LIVE CENTER

• NC STANDARD LATHE - MINIMIZES BITE INTERFERANCE & NUT TYPE- LIVE CENTER
• Morse Tapers Available - No. 3 - No. 6
• Sealed to prevent the inflow of cutting oils and foreign substances
• High precision of rotational accuracy and durability through triplexed bearing structure
• Shaft heated to 58 - 62 HRc
• Run Out 0.00012" or 0.003mm

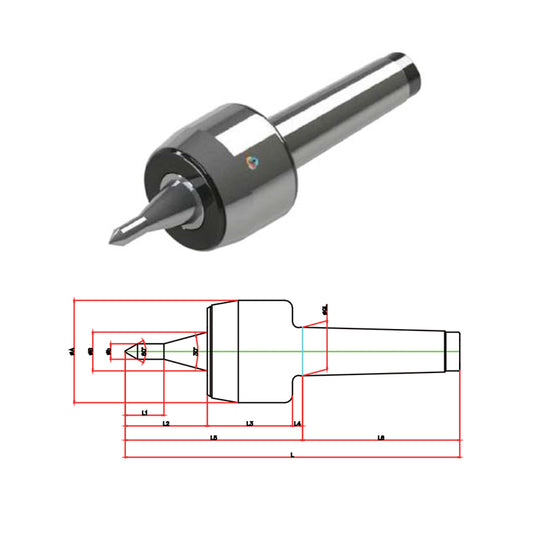

• NC STANDARD LATHE – SCREW THREAD TYPE - LIVE CENTER
• Screw thread type, appropriate model for NC lathes.
• Morse Tapers Available - No. 3 - No. 5
• Sealed to prevent the inflow of cutting oils, coolants and foreign substances
• High precision of rotational accuracy and durability through triplexed bearing structure
• Shaft heated to 58 - 62 HRc
• Run Out 0.00012" or 0.003mm

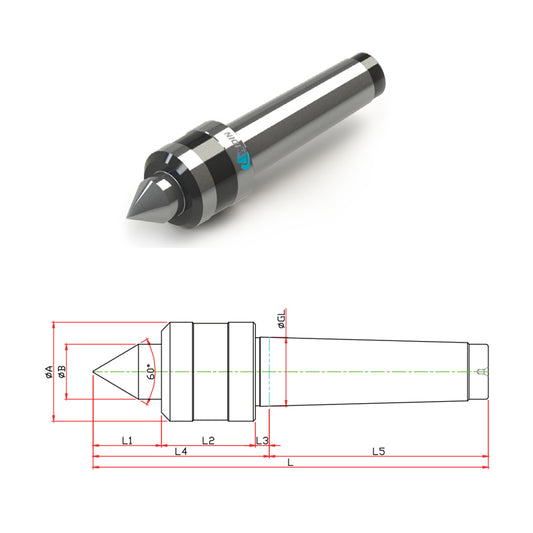

• NC HEAVY DUTY & WEIGHT REQUIREMENTS LATHE - LIVE CENTER
• Morse Tapers Available - No. 3 - No. 7
• Semi high-speed use sealed to prevent the inflow of cutting oils and foreign substances
• Longer life due to taper roller bearings
• Shaft heated to 58 - 62 HRc
• Run Out 0.00012" or 0.003mm

• CNC STANDARD - LIVE CENTER
• Morse Tapers Available - No. 3 - No. 5
• Sealed to prevent the inflow of cutting oils and foreign substances Live Center for CNC Lathes
• Run Out 0.00012"/0.0002" or 0.003mm/ 0.005mm.

• CNC STANDARD - LIVE CENTER
• Morse Tapers Available - No. 3 - No. 5
• Sealed to prevent the inflow of cutting oils and foreign substances Live Center for CNC Lathes
• Run Out 0.00012"/0.0002" or 0.003mm/ 0.005mm.

• CNC STANDARD - LIVE CENTER
• Morse Tapers Available - No. 3 - No. 5
• Sealed to prevent the inflow of cutting oils and foreign substances Live Center for CNC Lathes
• Run Out 0.00012"/0.0002" or 0.003mm/ 0.005mm.

• CNC STANDARD - LIVE CENTER
• Morse Tapers Available - No. 3 - No. 5
• Sealed to prevent the inflow of cutting oils and foreign substances Live Center for CNC Lathes
• Run Out 0.00012"/0.0002" or 0.003mm/ 0.005mm.

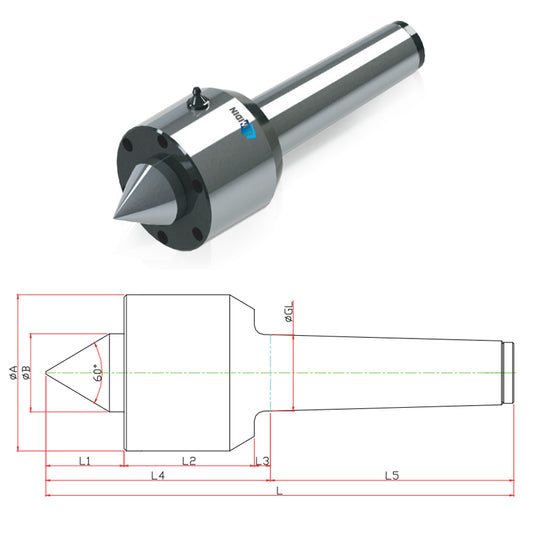

• GRINDING APPLICATIONS - LIVE CENTERS
• Morse Tapers Available - No. 4 - No. 8
• High precision centers for heavy duty requirements
• Run Out 0.00008" or 0.002mm

• ECONOMICAL - LIVE CENTER
• Morse Tapers Available - No. 1 - No. 6
• Wide range of uses and applications
• CAP rotation type which prevents inflow of foreign substances
• Run Out 0.00012"/0.00024" or 0.003mm/ 0.006mm

• ECONOMICAL - CARBIDE TIPPED - LIVE CENTER
• Morse Tapers Available - No. 3 - No. 6
• Wide range of uses and applications C
• CAP rotation type which prevents inflow of foreign substances
• Run Out 0.00012"/0.00024" or 0.003mm/ 0.006mm

• ECONOMICAL - CARBIDE TIPPED - LIVE CENTER
• Morse Tapers Available - No. 3 - No. 6
• Wide range of uses and applications C
• CAP rotation type which prevents inflow of foreign substances
• Run Out 0.00012"/0.00024" or 0.003mm/ 0.006mm

• ECONOMICAL - MINIMIZED BODY FOR LESS BITE INTERFERANCE & CARBIDE TIPPED - LIVE CENTER
• Morse Tapers Available - No. 3 - No. 6
• Wide range of uses and applications
• CAP rotation type which prevents inflow of foreign substances Run Out 0.00012"/0.00024" or 0.003mm/ 0.006mm

• ECONOMICAL - MINIMIZED BODY FOR LESS BITE INTERFERANCE & CARBIDE TIPPED - LIVE CENTER
• Morse Tapers Available - No. 3 - No. 6
• Wide range of uses and applications
• CAP rotation type which prevents inflow of foreign substances Run Out 0.00012"/0.00024" or 0.003mm/ 0.006mm

• NC HIGH SPEED ROTATIONAL - MINIMIZES BITE INTERFERANCE & CARBIDE TIPPED- LIVE CENTER
• Morse Tapers Available - No. 3 - No. 5
• Special bearings for high speed rotation
• Run Out 0.00012" or 0.003mm

• NC HIGH SPEED ROTATIONAL - MINIMIZES BITE INTERFERANCE, CARBIDE TIPPED & NUT TYPE - LIVE CENTER
• Morse Tapers Available - No. 3 - No. 5
• Special bearings for high speed rotation
• Run Out 0.00012" or 0.003mm

• NC HIGH SPEED ROTATIONAL - MINIMIZES BITE INTERFERANCE & NUT TYPE- LIVE CENTER
• Morse Tapers Available - No. 3 - No. 5
• Special bearings for high speed rotation
• Run Out 0.00012" or 0.003mm
