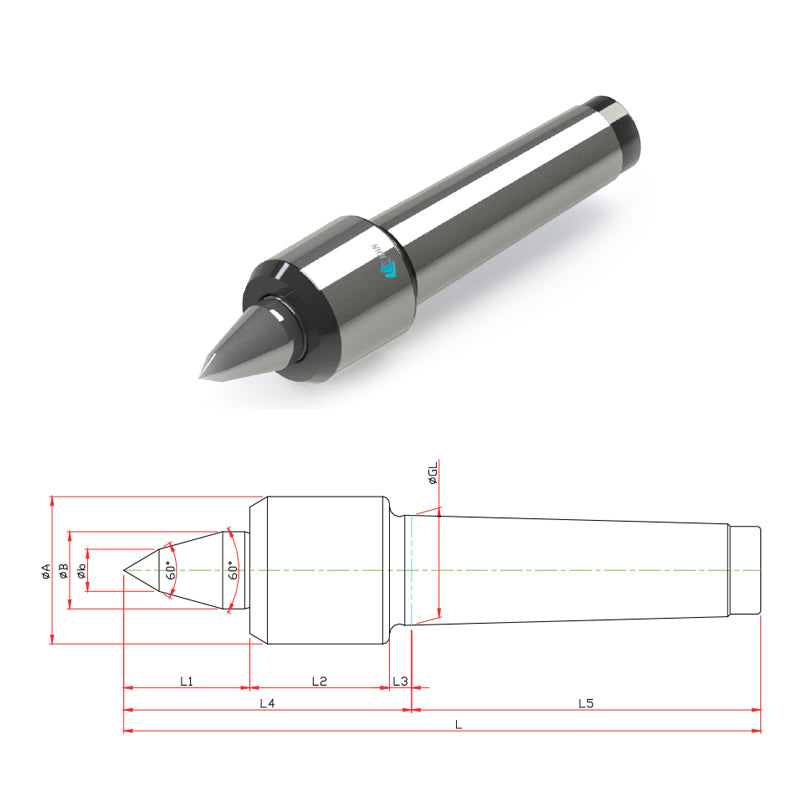

D50B TYPE

LC-3D50B

LC-3D50B

LIVE CENTER

Price
  • List:$352.98

  • US: 0 units
  • In-transit: 0 units
  • Korea: 0 units

SERIES DESCRIPTION

• CNC STANDARD - LIVE CENTER
• Morse Tapers Available - No. 3 - No. 5
• Sealed to prevent the inflow of cutting oils and foreign substances Live Center for CNC Lathes
• Run Out 0.00012"/0.0002" or 0.003mm/ 0.005mm.

  • EDP NO
  • PART NO
  • MORSE TAPER
  • GL
  • A
  • B
  • b
  • d
  • d
  • L1
  • L2
  • L3
  • L4
  • L5
  • L6
  • C
  • D
  • E
  • G
  • H
  • N
  • P,C,D
  • T
  • L
  • MAX. WEIGHT (lbs)
  • RPM MAX
  • RUN OUT (inch)
    • LC-3D50B
    • 82350
    • NO. 3
    • 23.825
    • 34
    • 22
    • 10
    • 25
    • 38
    • 5
    • 72
    • 81
    • 153
    • 881.85
    • 4800
