LIVE CENTER

N/A - Special

N/A - Special

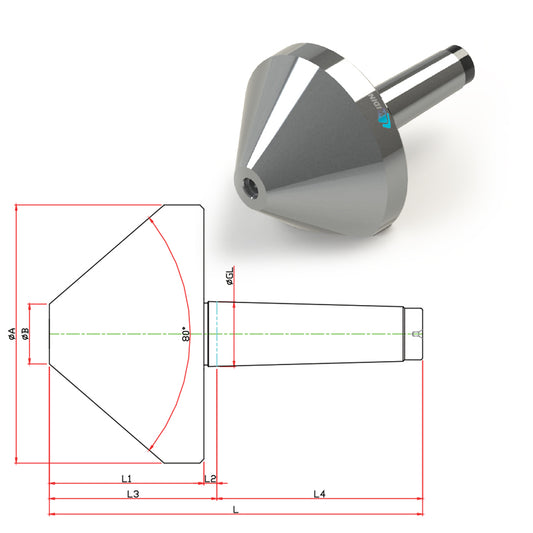

• PT-80 - PIPE MACHINING - HOLLOW NOSE - LIVE CENTER
• Morse Tapers Available - No. 3 - No. 6
• 80O hollow nose
• Optimal RPM below 3800 RPM

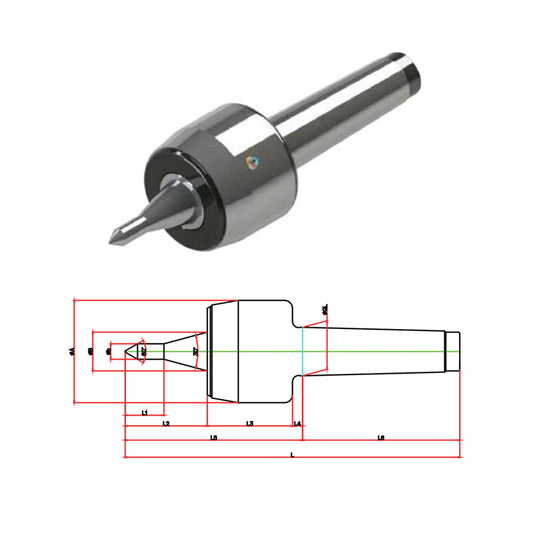

• ECONOMICAL - CARBIDE TIPPED - LIVE CENTER
• Morse Tapers Available - No. 3 - No. 6
• Wide range of uses and applications C
• CAP rotation type which prevents inflow of foreign substances
• Run Out 0.00012"/0.00024" or 0.003mm/ 0.006mm

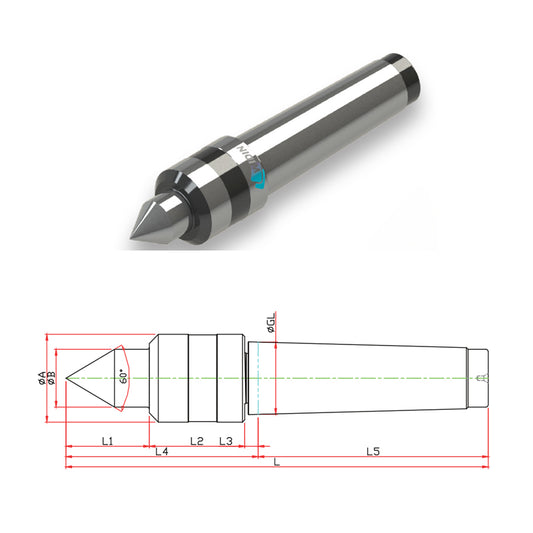

• NC STANDARD LATHE – SCREW THREAD TYPE - LIVE CENTER
• Screw thread type, appropriate model for NC lathes.
• Morse Tapers Available - No. 3 - No. 5
• Sealed to prevent the inflow of cutting oils, coolants and foreign substances
• High precision of rotational accuracy and durability through triplexed bearing structure
• Shaft heated to 58 - 62 HRc
• Run Out 0.00012" or 0.003mm

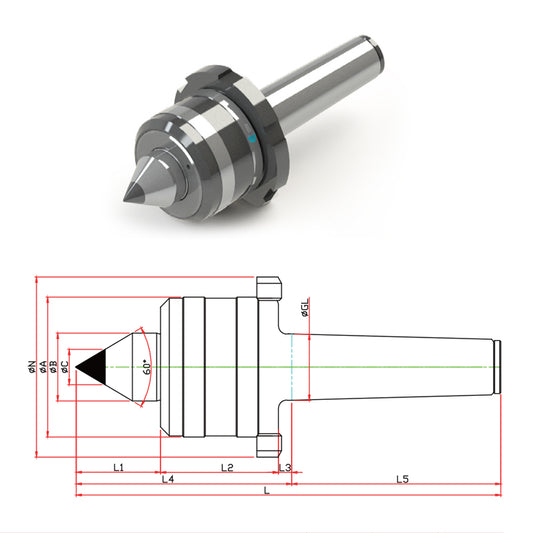

• NC HEAVY LATHE - MINIMIZES BITE INTERFERANCE, CARBIDE TIPPED & NUT TYPE - LIVE CENTER
• Morse Tapers Available - No. 3 - No. 6
• Sealed to prevent the inflow of cutting oils and foreign substances
• Upgraded bearings resulting in better durability and longer life compared to NC TYPE H
• High precision of rotational accuracy and durability through triplexed bearing structure
• Shaft heated to 58 - 62 HRc
• Run Out 0.00012" or 0.003mm

• NC HIGH SPEED ROTATIONAL - MINIMIZES BITE INTERFERANCE, CARBIDE TIPPED & NUT TYPE - LIVE CENTER
• Morse Tapers Available - No. 3 - No. 5
• Special bearings for high speed rotation
• Run Out 0.00012" or 0.003mm

• NC STANDARD LATHE – SCREW THREAD & DRAW-OFF NUT TYPE - LIVE CENTER
• Screw thread & draw off nut type, appropriate model for NC lathes.
• Morse Tapers Available - No. 3 - No. 5
• Sealed to prevent the inflow of cutting oils, coolants and foreign substances
• High precision of rotational accuracy and durability through triplexed bearing structure
• Shaft heated to 58 - 62 HRc
• Run Out 0.00012" or 0.003mm

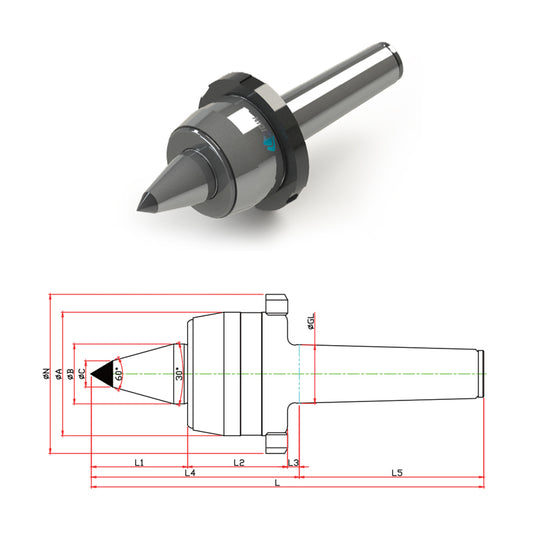

• NC HEAVY DUTY & WEIGHT REQUIREMENTS LATHE - CARBIDE TIPPED & NUT TYPE - LIVE CENTER
• Morse Tapers Available - No. 3 - No. 6
• Sealed to prevent the inflow of cutting oils and foreign substances Longer life due to taper roller bearings
• Shaft heated to 58 - 62 HRc
• Run Out 0.00012" or 0.003mm

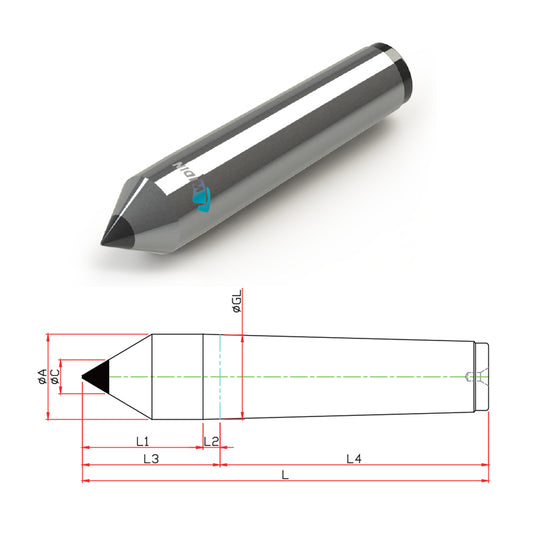

• FULL TIPPED DEAD CENTER WITH CARBIDE TIPPED
• Morse Tapers Available - No. 1 - No. 7
• Run Out 0.00012" / 0.0002" or 0.003mm /0.005mm

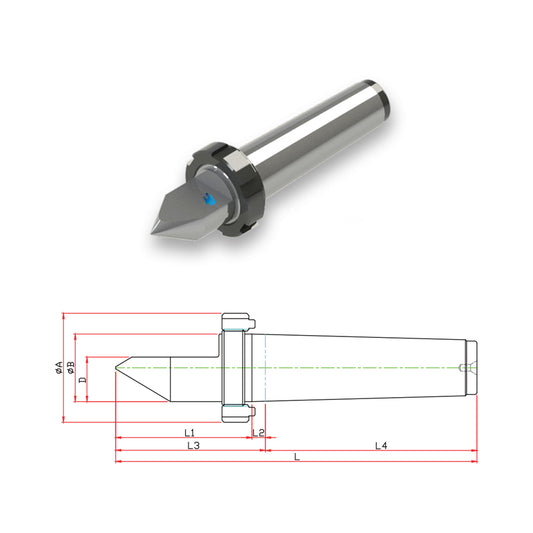

• HALF TIPPED DEAD CENTER
• Morse Tapers Available - No. 1 - No. 7
• Minimized BITE interferance
• Run Out 0.00012" / 0.0002" or 0.003mm /0.005mm

• PT-80 - PIPE MACHINING - HOLLOW NOSE - LIVE CENTER
• Morse Tapers Available - No. 3 - No. 6
• 80O hollow nose
• Optimal RPM below 3800 RPM
