LIVE CENTER

LIVE CENTER

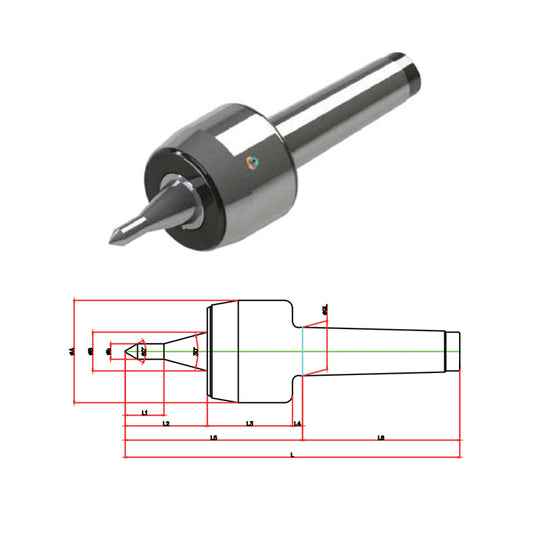

  • LC-4HDSC

    LC-4HDSC

    • ECONOMICAL - MINIMIZED BODY FOR LESS BITE INTERFERANCE & CARBIDE TIPPED - LIVE CENTER
    • Morse Tapers Available - No. 3 - No. 6
    • Wide range of uses and applications
    • CAP rotation type which prevents inflow of foreign substances Run Out 0.00012"/0.00024" or 0.003mm/ 0.006mm

    • List: $143.24 USD
    $143.24 USD
  • LC-5HDSC

    LC-5HDSC

    • ECONOMICAL - MINIMIZED BODY FOR LESS BITE INTERFERANCE & CARBIDE TIPPED - LIVE CENTER
    • Morse Tapers Available - No. 3 - No. 6
    • Wide range of uses and applications
    • CAP rotation type which prevents inflow of foreign substances Run Out 0.00012"/0.00024" or 0.003mm/ 0.006mm

    • List: $373.61 USD
    $373.61 USD
  • LC-6HDSC

    LC-6HDSC

    • ECONOMICAL - MINIMIZED BODY FOR LESS BITE INTERFERANCE & CARBIDE TIPPED - LIVE CENTER
    • Morse Tapers Available - No. 3 - No. 6
    • Wide range of uses and applications
    • CAP rotation type which prevents inflow of foreign substances Run Out 0.00012"/0.00024" or 0.003mm/ 0.006mm

    • List: $0.00 USD
    $0.00 USD
  • LC-5NCTH-08

    LC-5NCTH-08

    • NC STANDARD LATHE – SCREW THREAD TYPE - LIVE CENTER
    • Screw thread type, appropriate model for NC lathes.
    • Morse Tapers Available - No. 3 - No. 5
    • Sealed to prevent the inflow of cutting oils, coolants and foreign substances
    • High precision of rotational accuracy and durability through triplexed bearing structure
    • Shaft heated to 58 - 62 HRc
    • Run Out 0.00012" or 0.003mm

    • List: $578.63 USD
    $578.63 USD
  • LC-4NCTH-08

    LC-4NCTH-08

    • NC STANDARD LATHE – SCREW THREAD TYPE - LIVE CENTER
    • Screw thread type, appropriate model for NC lathes.
    • Morse Tapers Available - No. 3 - No. 5
    • Sealed to prevent the inflow of cutting oils, coolants and foreign substances
    • High precision of rotational accuracy and durability through triplexed bearing structure
    • Shaft heated to 58 - 62 HRc
    • Run Out 0.00012" or 0.003mm

    • List: $471.58 USD
    $471.58 USD
  • LC-5NCTH-06

    LC-5NCTH-06

    • NC STANDARD LATHE – SCREW THREAD TYPE - LIVE CENTER
    • Screw thread type, appropriate model for NC lathes.
    • Morse Tapers Available - No. 3 - No. 5
    • Sealed to prevent the inflow of cutting oils, coolants and foreign substances
    • High precision of rotational accuracy and durability through triplexed bearing structure
    • Shaft heated to 58 - 62 HRc
    • Run Out 0.00012" or 0.003mm

    • List: $578.63 USD
    $578.63 USD
  • LC-3NCTH-12

    LC-3NCTH-12

    • NC STANDARD LATHE – SCREW THREAD TYPE - LIVE CENTER
    • Screw thread type, appropriate model for NC lathes.
    • Morse Tapers Available - No. 3 - No. 5
    • Sealed to prevent the inflow of cutting oils, coolants and foreign substances
    • High precision of rotational accuracy and durability through triplexed bearing structure
    • Shaft heated to 58 - 62 HRc
    • Run Out 0.00012" or 0.003mm

    • List: $410.82 USD
    $410.82 USD
  • LC-3NCTH-14

    LC-3NCTH-14

    • NC STANDARD LATHE – SCREW THREAD TYPE - LIVE CENTER
    • Screw thread type, appropriate model for NC lathes.
    • Morse Tapers Available - No. 3 - No. 5
    • Sealed to prevent the inflow of cutting oils, coolants and foreign substances
    • High precision of rotational accuracy and durability through triplexed bearing structure
    • Shaft heated to 58 - 62 HRc
    • Run Out 0.00012" or 0.003mm

    • List: $410.82 USD
    $410.82 USD

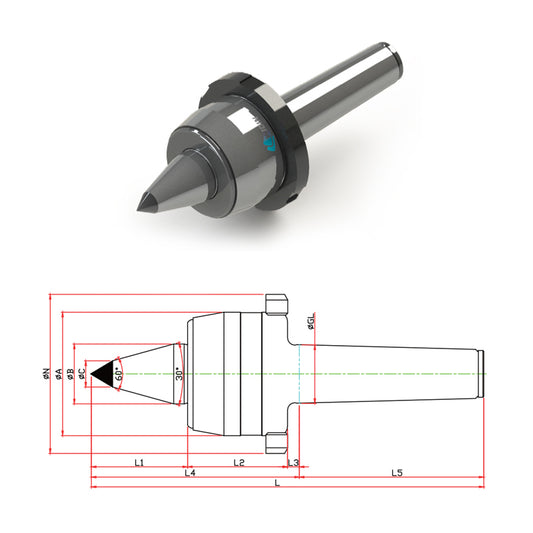

  • LC-6NCPBCN

    LC-6NCPBCN

    • NC HEAVY LATHE - MINIMIZES BITE INTERFERANCE, CARBIDE TIPPED & NUT TYPE - LIVE CENTER
    • Morse Tapers Available - No. 3 - No. 6
    • Sealed to prevent the inflow of cutting oils and foreign substances
    • Upgraded bearings resulting in better durability and longer life compared to NC TYPE H
    • High precision of rotational accuracy and durability through triplexed bearing structure
    • Shaft heated to 58 - 62 HRc
    • Run Out 0.00012" or 0.003mm

    • List: $0.00 USD
    $0.00 USD

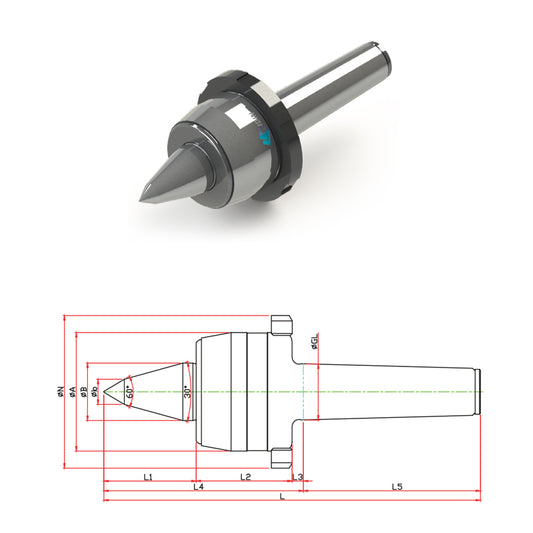

  • LC-4NCPBCN

    LC-4NCPBCN

    • NC HEAVY LATHE - MINIMIZES BITE INTERFERANCE, CARBIDE TIPPED & NUT TYPE - LIVE CENTER
    • Morse Tapers Available - No. 3 - No. 6
    • Sealed to prevent the inflow of cutting oils and foreign substances
    • Upgraded bearings resulting in better durability and longer life compared to NC TYPE H
    • High precision of rotational accuracy and durability through triplexed bearing structure
    • Shaft heated to 58 - 62 HRc
    • Run Out 0.00012" or 0.003mm

    • List: $1,064.70 USD
    $1,064.70 USD
  • LC-4NCPBN

    LC-4NCPBN

    • List: $972.10 USD
    $972.10 USD
  • LC-5NCPBN

    LC-5NCPBN

    • List: $1,189.09 USD
    $1,189.09 USD

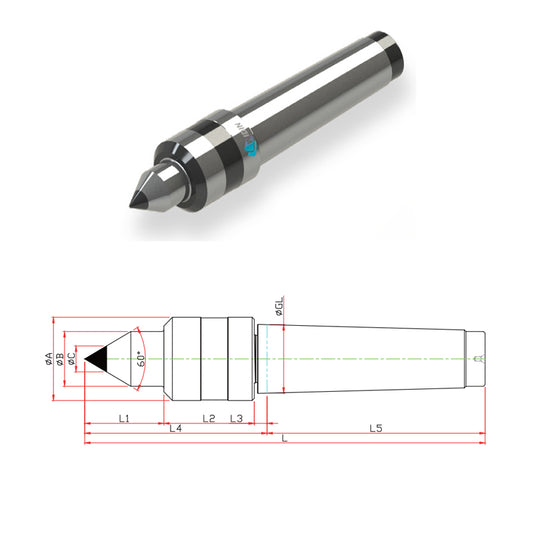

  • LM-3BCN

    LM-3BCN

    • NC HIGH SPEED ROTATIONAL - MINIMIZES BITE INTERFERANCE, CARBIDE TIPPED & NUT TYPE - LIVE CENTER
    • Morse Tapers Available - No. 3 - No. 5
    • Special bearings for high speed rotation
    • Run Out 0.00012" or 0.003mm

    • List: $227.14 USD
    $227.14 USD
  • LM-6BCN

    LM-6BCN

    • NC HIGH SPEED ROTATIONAL - MINIMIZES BITE INTERFERANCE, CARBIDE TIPPED & NUT TYPE - LIVE CENTER
    • Morse Tapers Available - No. 3 - No. 5
    • Special bearings for high speed rotation
    • Run Out 0.00012" or 0.003mm

    • List: $459.33 USD
    $459.33 USD
  • LM-4BCN

    LM-4BCN

    • NC HIGH SPEED ROTATIONAL - MINIMIZES BITE INTERFERANCE, CARBIDE TIPPED & NUT TYPE - LIVE CENTER
    • Morse Tapers Available - No. 3 - No. 5
    • Special bearings for high speed rotation
    • Run Out 0.00012" or 0.003mm

    • List: $0.00 USD
    $0.00 USD
  • LM-6BN

    LM-6BN

    • NC HIGH SPEED ROTATIONAL - MINIMIZES BITE INTERFERANCE & NUT TYPE- LIVE CENTER
    • Morse Tapers Available - No. 3 - No. 5
    • Special bearings for high speed rotation
    • Run Out 0.00012" or 0.003mm

    • List: $403.79 USD
    $403.79 USD
