CES

CES302140

CES302140

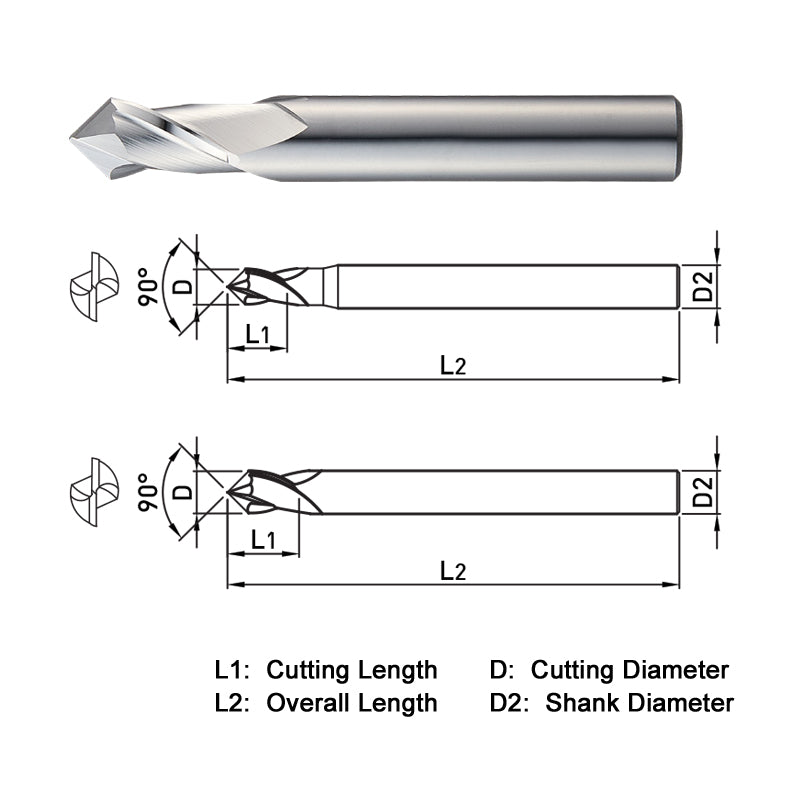

CENTERING TOOL

Price
  • List:$158.83

  • US: 5 units
  • In-transit: 0 units
  • Korea: 0 units

SERIES DESCRIPTION

• 2 FLUTE - SINGLE END DRILL MILL - SOLID CARBIDE - BRIGHT - METRIC
• Available in 90° point angles
• Available in3mm thru 20mm cutting diameters
• Good for use in carbon, alloy, die and stainless steels, cast iron, aluminum and hardened steel to 50 HRc

Tolerance

D(All Sizes)=0~-0.05mm SHANK DIA. = h6

  • EDP NO
  • PART NO
  • FLUTES
  • CUTTING DIAMETER
  • CUTTING LENGTH
  • OVERALL LENGTH
  • SHANK DIAMETER
  • END TYPE
  • HELIX
  • LETTER SIZE
  • POINT ANGLE
  • COATING
    • CES302140
    • 143015
    • 2
    • 14
    • 24
    • 80
    • SOLID CENTERING ENDMILL
    • 30
    • Uncoated
