HP503032

HP503032

  • List: $62.66 USD
$62.66 USD
Sale Sold out
Special Quote
  • US: 8 units
  • In-transit: 0 units
  • Korea: 11 units

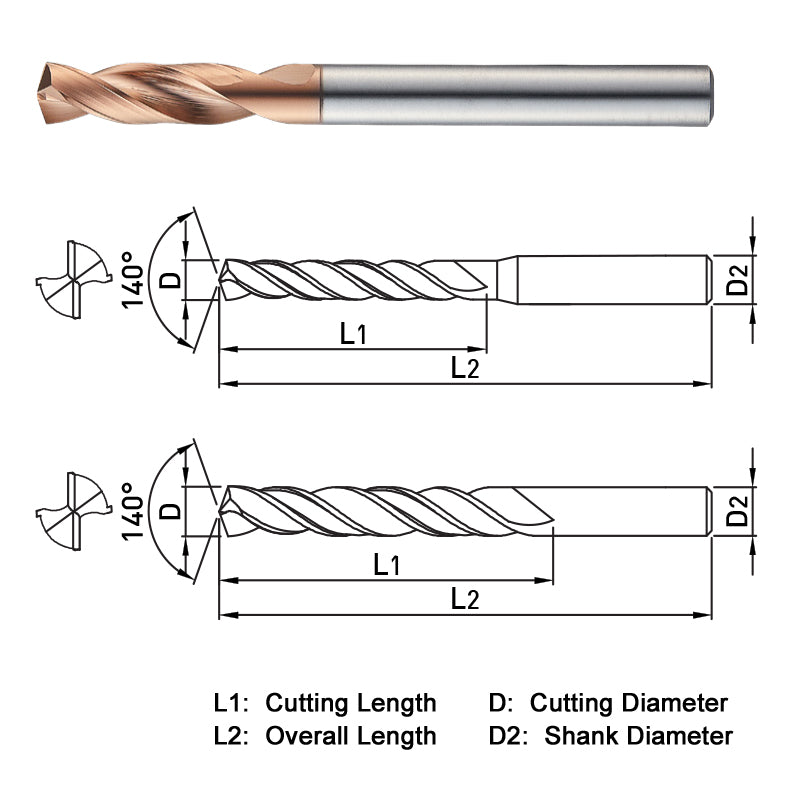

• 2 FLUTE - 3XD CUT LENGTH - SOLID CARBIDE - TiALN+HH COATING - METRIC • Double Margin • 140° point angle • Cutting diameter range = 3mm - 20mm • Good up to 50HRc • Excellent in alloy & stainless steel, cast iron and harden steels up to 50HRc• •

View full details
  • EDP NO
  • PART NO
  • FLUTES
  • CUTTING DIAMETER
  • CUTTING LENGTH
  • OVERALL LENGTH
  • SHANK DIAMETER
  • END TYPE
  • HELIX
  • LETTER SIZE
  • NECK LENGTH
  • POINT ANGLE
  • CUT DIA. X LENGTH
  • MARGIN
  • COOLANT
  • COATING
  • EDP NO
  • PART NO
  • FLUTES
  • CUTTING LENGTH
  • CUTTING DIAMETER
  • OVERALL LENGTH
  • SHANK DIAMETER
  • NECK LENGTH
  • CORNER RADIUS
  • END CUT TYPE
  • LETTER SIZE
  • TAPER DEGREE
  • HELIX ANGLE
  • COATING
    • HP503032
    • 222003
    • 2
    • 3.2
    • 14
    • 62
    • FACET
    • 30
    • 20
    • 140°
    • 3xD
    • DOUBLE
    • EXTERNAL
    • TiAlN-HH
