HPI503
HPI503031
- US: 7 units
- In-transit: 0 units
- Korea: 0 units
SERIES DESCRIPTION

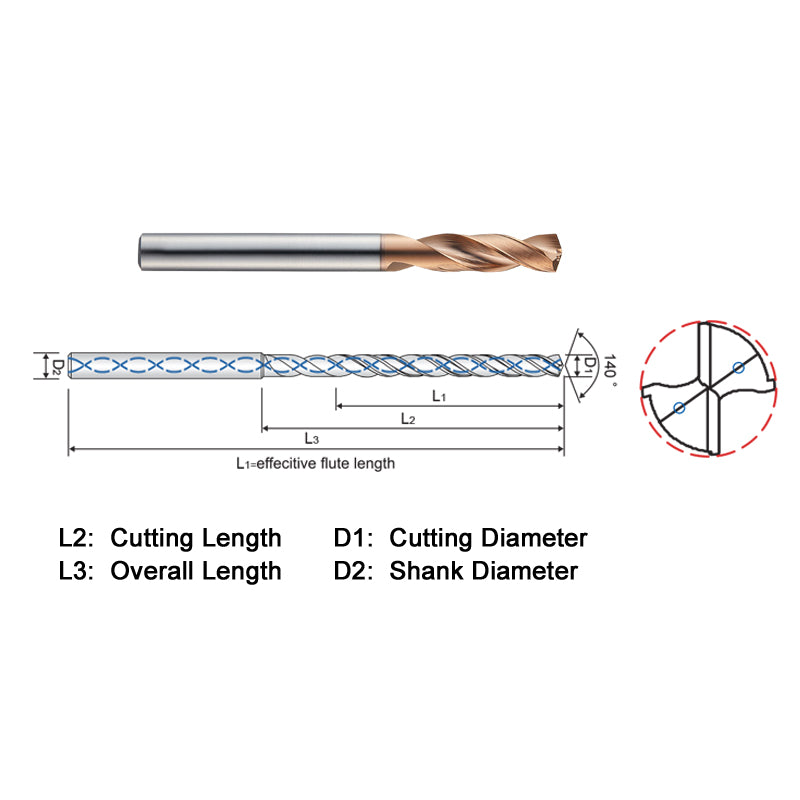

• 2 FLUTE - 3XD CUT LENGTH - SOLID CARBIDE - TiALN+HH COATING - METRIC • Double Margin • 140° point angle • Cutting diameter range = 3mm - 20mm • Good up to 50HRc • Excellent in alloy & stainless steel, cast iron and harden steels up to 50HRc
Tolerance
D3 = +0.012~+0.002mm D3.1~D6 = +0.016~+0.004mm D6.1~D10 = +0.021~+0.006mm D10.1~D16 = +0.025~+0.007mm D18.1~ = +0.029~+0.008mm SHANK DIA. = h6
