HPI503

HPI503066

HPI503066

DRILL

Price
  • List:$97.60

  • US: 0 units
  • In-transit: 0 units
  • Korea: 1 units

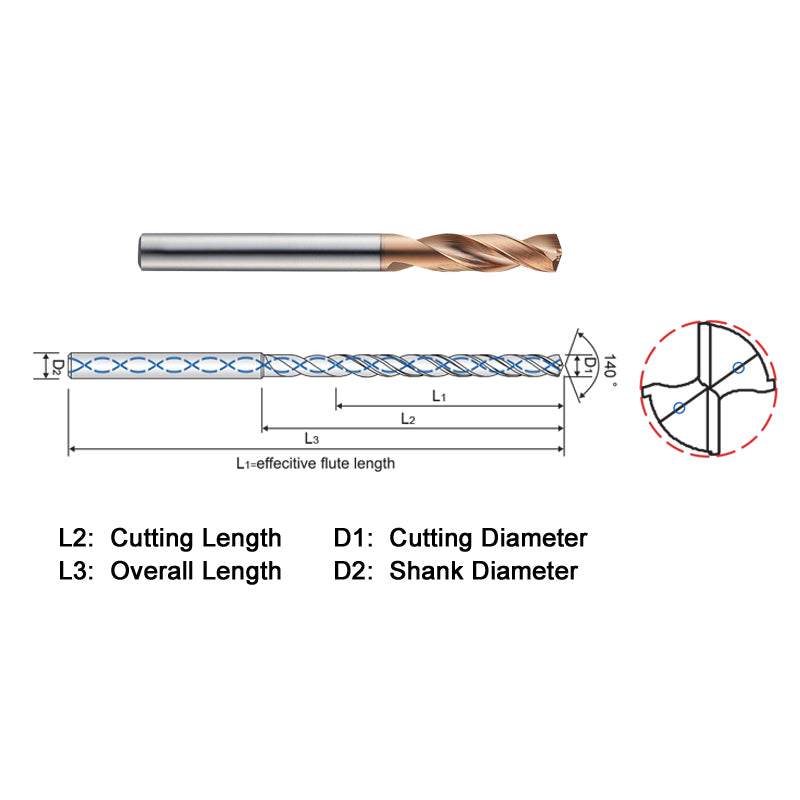

SERIES DESCRIPTION

• 2 FLUTE - 3XD CUT LENGTH - SOLID CARBIDE - TiALN+HH COATING - METRIC
• Double Margin
• 140° point angle
• Cutting diameter range = 3mm - 20mm
• Good up to 50HRc
• Excellent in alloy & stainless steel, cast iron and harden steels up to 50HRc

Tolerance

D3 = +0.012~+0.002mm D3.1~D6 = +0.016~+0.004mm D6.1~D10 = +0.021~+0.006mm D10.1~D16 = +0.025~+0.007mm D18.1~ = +0.029~+0.008mm SHANK DIA. = h6

  • EDP NO
  • PART NO
  • FLUTES
  • CUTTING DIAMETER
  • CUTTING LENGTH
  • OVERALL LENGTH
  • SHANK DIAMETER
  • END TYPE
  • HELIX
  • LETTER SIZE
  • NECK LENGTH
  • POINT ANGLE
  • CUT DIA. X LENGTH
  • MARGIN
  • COOLANT
  • COATING
    • HPI503066
    • 223048
    • 2
    • 6.6
    • 24
    • 79
    • FACET
    • 30
    • 34
    • 140°
    • 3xD
    • DOUBLE
    • INTERNAL
    • TiAlN-HH
