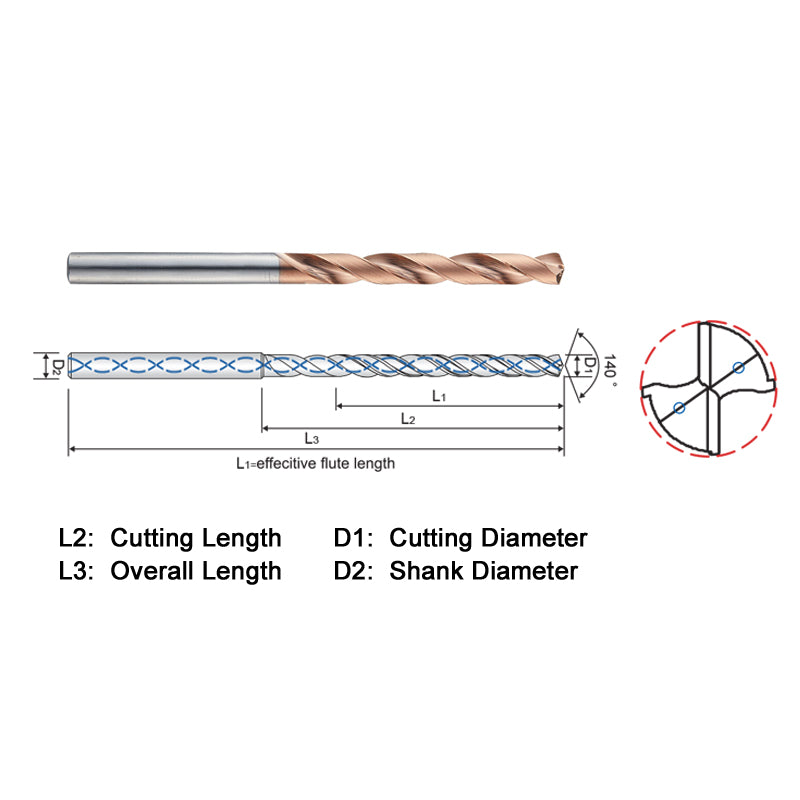

HPI508N

HPI50807938N

HPI50807938N

DRILL

Home page

Price
  • List:$146.22

  • US: 31 units
  • In-transit: 0 units
  • Korea: 19 units

SERIES DESCRIPTION

• 2 FLUTE - 8XD CUT LENGTH - INTERNAL COOLANT - TiALN+HH COATING - METRIC
• Double Margin
• 140° point angle
• Cutting diameter range = 3mm - 20mm
• Good up to 50HRc
• Excellent in alloy & stainless steel, cast iron and harden steels up to 50HRc"

Tolerance

~D3 = +0.012~+0.002mm
D3 = +0.012~+0.002mm
D3.1~D6 = +0.016~+0.004mm
D6.1~D10 = +0.021~+0.006mm
D10.1~D16 = +0.025~+0.007mm
D18.1~ = +0.029~+0.008mm

SHANK DIA. = h6
