HPI508N
HPI508093N
- US: 4 units
- In-transit: 0 units
- Korea: 0 units
SERIES DESCRIPTION

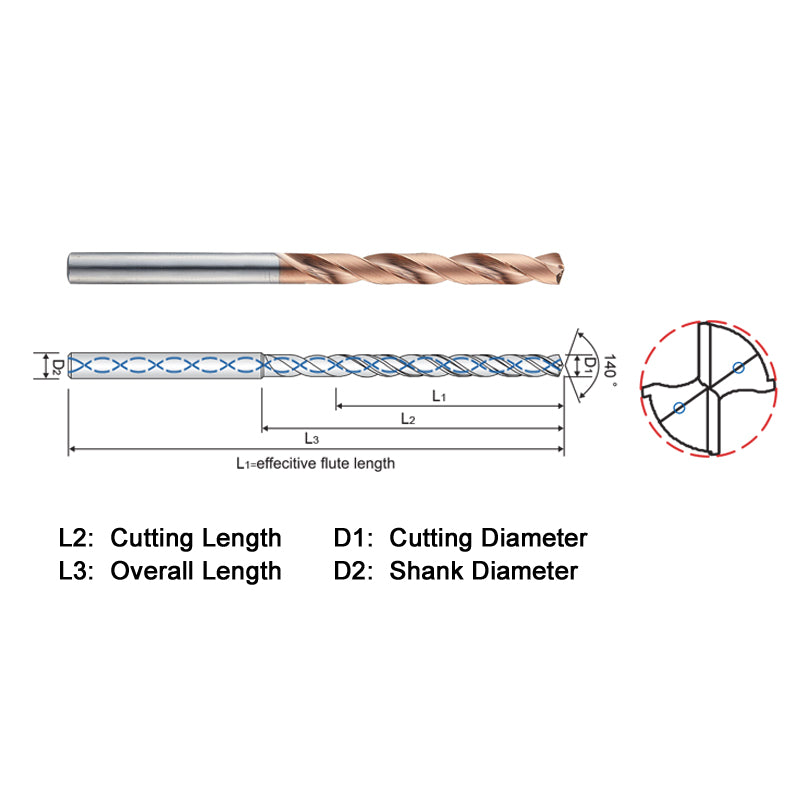

2 FLUTE - 8XD CUT LENGTH - INTERNAL COOLANT - TiALN+HH COATING - METRIC Double Margin 140° point angle Cutting diameter range = 3mm - 20mm Good up to 50HRc Excellent in alloy & stainless steel, cast iron and harden steels up to 50HRc"
Tolerance
~D3 = +0.012~+0.002mm D3 = +0.012~+0.002mm D3.1~D6 = +0.016~+0.004mm D6.1~D10 = +0.021~+0.006mm D10.1~D16 = +0.025~+0.007mm D18.1~ = +0.029~+0.008mm SHANK DIA. = h6
