HPI508N

HPI508095N

HPI508095N

DRILL

Price
  • List:$295.34

  • US: 5 units
  • In-transit: 0 units
  • Korea: 0 units

SERIES DESCRIPTION

• 2 FLUTE - 8XD CUT LENGTH - INTERNAL COOLANT - TiALN+HH COATING - METRIC • Double Margin • 140° point angle • Cutting diameter range = 3mm - 20mm • Good up to 50HRc • Excellent in alloy & stainless steel, cast iron and harden steels up to 50HRc"

Tolerance

~D3 = +0.012~+0.002mm D3 = +0.012~+0.002mm D3.1~D6 = +0.016~+0.004mm D6.1~D10 = +0.021~+0.006mm D10.1~D16 = +0.025~+0.007mm D18.1~ = +0.029~+0.008mm SHANK DIA. = h6

  • EDP NO
  • PART NO
  • FLUTES

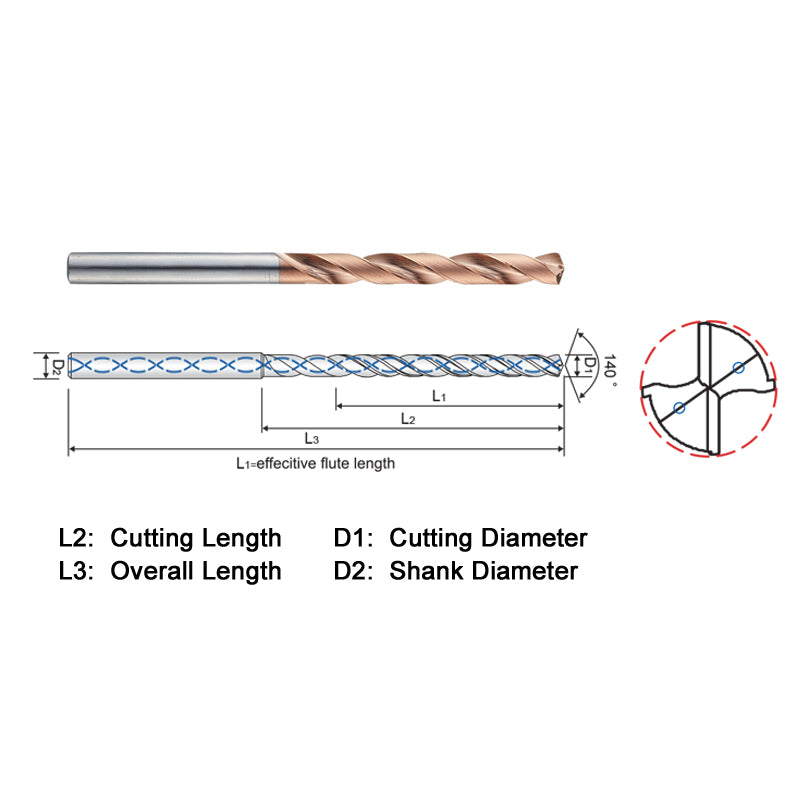

  • CUTTING DIAMETER
  • CUTTING LENGTH
  • OVERALL LENGTH
  • SHANK DIAMETER
  • END TYPE
  • HELIX
  • LETTER SIZE
  • NECK LENGTH
  • POINT ANGLE
  • CUT DIA. X LENGTH
  • MARGIN
  • COOLANT
  • COATING
    • HPI508095N
    • 225149
    • 2
    • 9.5
    • 95
    • 139
    • FACET
    • 30
    • 0.374
    • 140°
    • 8xD
    • DOUBLE
    • INTERNAL
    • TiAlN-HH
