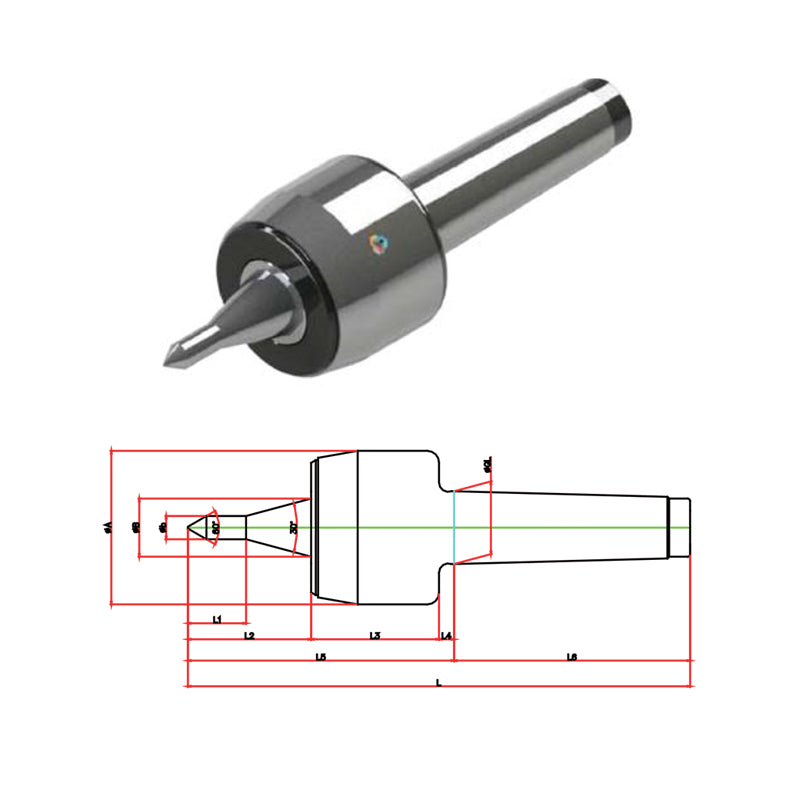

NCTH TYPE

LC-5NCTH-08

LC-5NCTH-08

LIVE CENTER

Price
  • List:$519.89

  • US: 2 units
  • In-transit: 0 units
  • Korea: 0 units

SERIES DESCRIPTION

• NC STANDARD LATHE – SCREW THREAD TYPE - LIVE CENTER
• Screw thread type, appropriate model for NC lathes.
• Morse Tapers Available - No. 3 - No. 5
• Sealed to prevent the inflow of cutting oils, coolants and foreign substances
• High precision of rotational accuracy and durability through triplexed bearing structure
• Shaft heated to 58 - 62 HRc
• Run Out 0.00012" or 0.003mm

  • EDP NO
  • PART NO
  • MORSE TAPER
  • GL
  • A
  • B
  • b
  • d
  • d
  • L1
  • L2
  • L3
  • L4
  • L5
  • L6
  • C
  • D
  • E
  • G
  • H
  • N
  • P,C,D
  • T
  • L
  • MAX. WEIGHT (lbs)
  • RPM MAX
  • RUN OUT (inch)
    • LC-5NCTH-08
    • 15002
    • NO. 5
    • 44.399
    • 82
    • 32
    • 16
    • 35.1
    • 65
    • 65
    • 6.5
    • 136.5
    • 129.5
    • 266
    • 2425.09
    • 3400
