NCCN TYPE

LC-6NCCN

LC-6NCCN

LIVE CENTER

Price
  • List:$0.00

  • US: 0 units
  • In-transit: 0 units
  • Korea: 0 units

SERIES DESCRIPTION

• NC STANDARD LATHE - CARBIDE TIPPED & NUT TYPE - LIVE CENTER
• Morse Tapers Available - No. 3 - No. 6
• Sealed to prevent the inflow of cutting oils and foreign substances
• High precision of rotational accuracy and durability through triplexed bearing structure Shaft heated to 58 - 62 HRc
• Run Out 0.00012" or 0.003mm

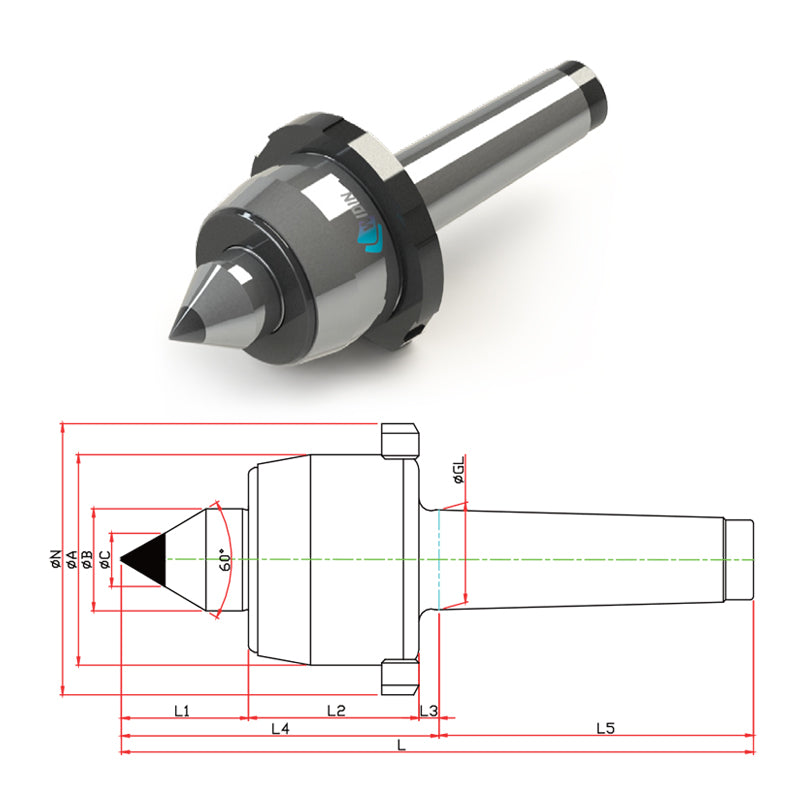

  • EDP NO
  • PART NO
  • MORSE TAPER
  • GL
  • A
  • B
  • b
  • d
  • d
  • L1
  • L2
  • L3
  • L4
  • L5
  • L6
  • C
  • D
  • E
  • G
  • H
  • N
  • P,C,D
  • T
  • L
  • MAX. WEIGHT (lbs)
  • RPM MAX
  • RUN OUT (inch)
    • LC-6NCCN
    • NO. 6
    • 63.384
    • 105
    • 45
    • 54
    • 80
    • 8
    • 142
    • 182
    • 25
    • 130
    • 324
    • 4629.71
    • 3000
