LDS040L

LDS040L

  • List: $57.17 USD
$57.17 USD
Sale Sold out
Special Quote
  • US: 7 units
  • In-transit: 0 units
  • Korea: 65 units

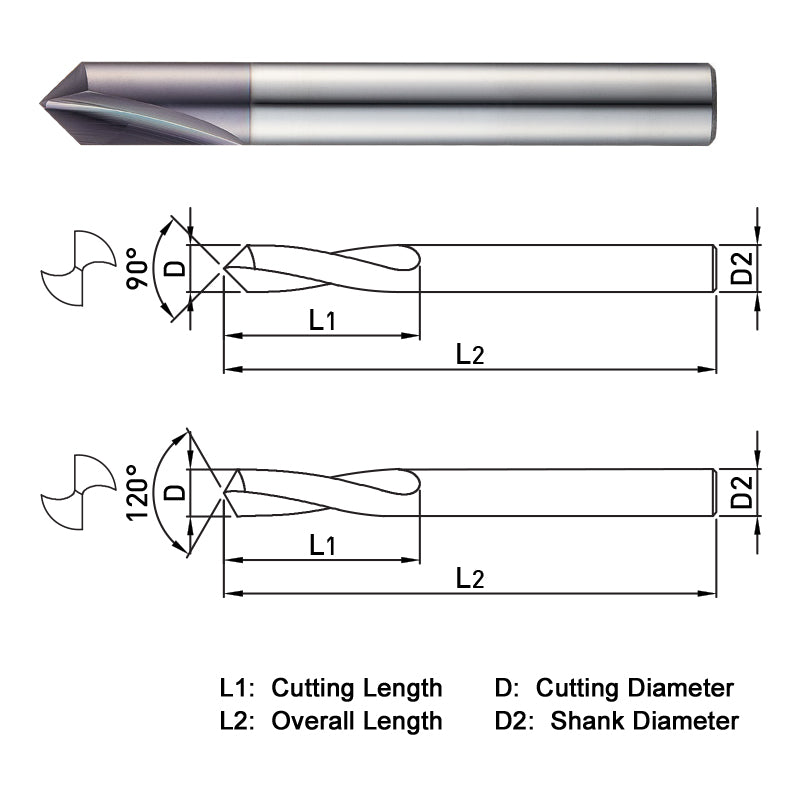

• 2 FLUTE - SINGLE END SPOT DRILL - SOLID CARBIDE - TiALN COATING - METRIC
• Available in 90° and 120° point angles
• Available in 3mm - 20mm cutting diameters
• Good for use in carbon, alloy, die and stainless steels, cast iron, aluminum and hardened steel to 50 HRc

View full details
  • EDP NO
  • PART NO
  • FLUTES
  • CUTTING DIAMETER
  • CUTTING LENGTH
  • OVERALL LENGTH
  • SHANK DIAMETER
  • END TYPE
  • HELIX
  • LETTER SIZE
  • POINT ANGLE
  • COATING
  • EDP NO
  • PART NO
  • FLUTES
  • CUTTING LENGTH
  • CUTTING DIAMETER
  • OVERALL LENGTH
  • SHANK DIAMETER
  • NECK LENGTH
  • CORNER RADIUS
  • END CUT TYPE
  • LETTER SIZE
  • TAPER DEGREE
  • HELIX ANGLE
  • COATING
    • LDS040L
    • 232005
    • 2
    • 4
    • 12
    • 100
    • SPOTTING DRILL
    • 12
    • 90°
    • TiAlN
