LDS

LDS120

LDS120

CENTERING TOOL

Price
  • List:$85.45

  • US: 14 units
  • In-transit: 0 units
  • Korea: 445 units

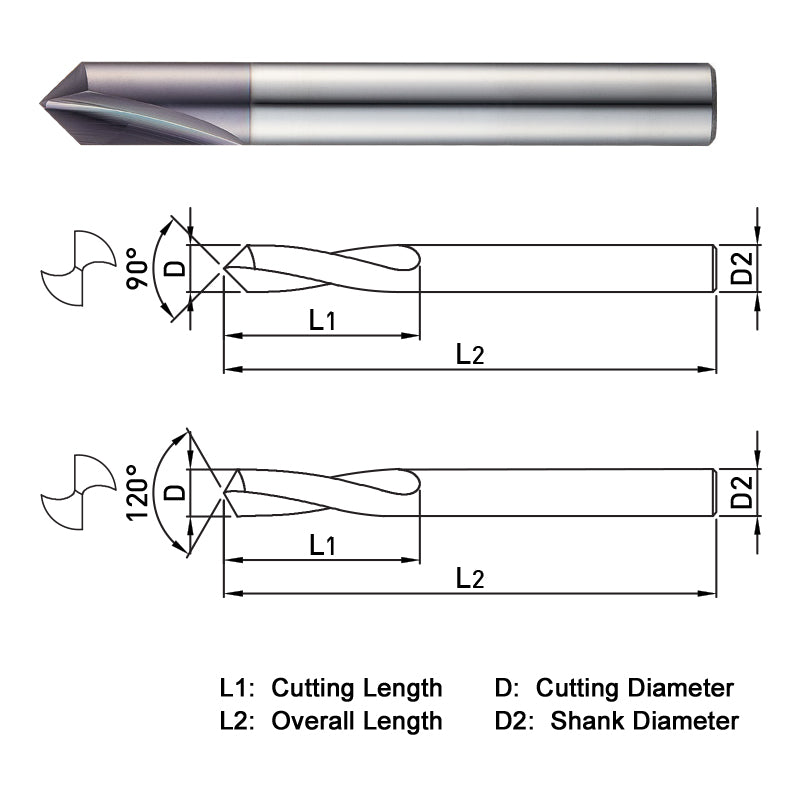

SERIES DESCRIPTION

• 2 FLUTE - SINGLE END SPOT DRILL - SOLID CARBIDE - TiALN COATING - METRIC
• Available in 90° and 120° point angles
• Available in 3mm - 20mm cutting diameters
• Good for use in carbon, alloy, die and stainless steels, cast iron, aluminum and hardened steel to 50 HRc

Tolerance

D(All Sizes) = 0~±0.01mm SHANK DIA. = h6

  • EDP NO
  • PART NO
  • FLUTES
  • CUTTING DIAMETER
  • CUTTING LENGTH
  • OVERALL LENGTH
  • SHANK DIAMETER
  • END TYPE
  • HELIX
  • LETTER SIZE
  • POINT ANGLE
  • COATING
    • LDS120
    • 232014
    • 12
    • 28
    • 80
    • NC SPOTTING DRILL
    • 12
    • 90⁰
    • TiAlN
