NDPL

NDPL147

NDPL147

DRILL

Price
  • List:$277.31

  • US: 0 units
  • In-transit: 0 units
  • Korea: 3 units

SERIES DESCRIPTION

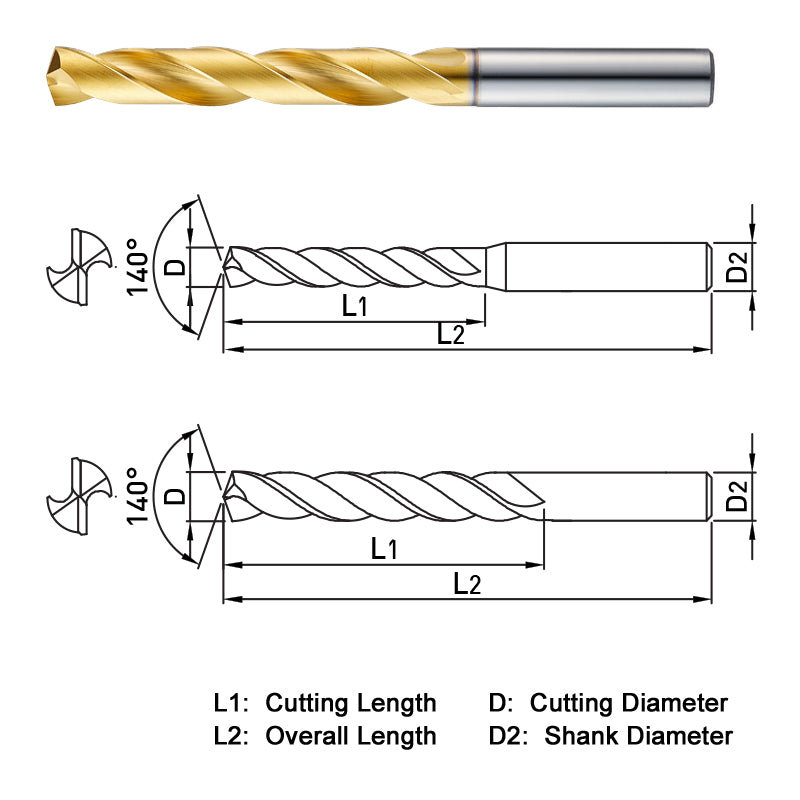

• 2 FLUTE - 6XD CUT LENGTH - SOLID CARBIDE - ALTiN COATING - METRIC • Single Margin • 140° point angle • Cutting diameter range 3mm - 20mm • Good up to 50HRc • Excellent in alloy & stainless steel, cast iron and harden steels up to 50HRc

Tolerance

~D3 = 0~-0.01mm D3.1~D6 = 0~-0.012mm D6.1~D10 = 0~-0.015mm D10.1~D18 = 0~-0.018mm D16 = h7 D18.1~ = 0~-0.01mm SHANK DIA. = h6

  • EDP NO
  • PART NO
  • FLUTES
  • CUTTING DIAMETER
  • CUTTING LENGTH
  • OVERALL LENGTH
  • SHANK DIAMETER
  • END TYPE
  • HELIX
  • LETTER SIZE
  • NECK LENGTH
  • POINT ANGLE
  • CUT DIA. X LENGTH
  • MARGIN
  • COOLANT
  • COATING
    • NDPL147
    • 599101
    • 2
    • 14.7
    • 100
    • 153
    • FACET
    • 30
    • 6xD
    • SINGLE
    • EXTERNAL
    • PVD
