NDPR

NDPR073

NDPR073

DRILL

Price
  • List:$65.27

  • US: 10 units
  • In-transit: 0 units
  • Korea: 51 units

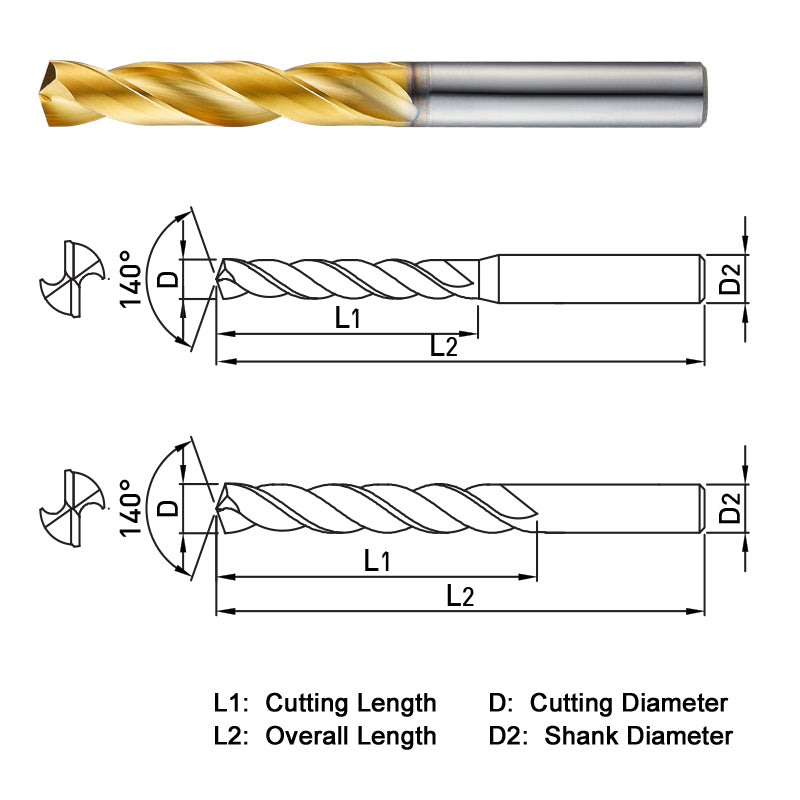

SERIES DESCRIPTION

• 2 FLUTE - 4XD CUT LENGTH - SOLID CARBIDE - ALTiN COATING - METRIC • Single Margin • 140° point angle • Cutting diameter range 1mm - 20mm • Good up to 50HRc • Excellent in alloy & stainless steel, cast iron and harden steels up to 50HRc

Tolerance

~D3 = 0~-0.01mm D3.1~D6 = 0~-0.012mm D6.1~D10 = 0~-0.015mm D10.1~D18 = 0~-0.018mm D16 = h7 D18.1~ = 0~-0.01mm SHANK DIA. = h6

  • EDP NO
  • PART NO
  • FLUTES
  • CUTTING DIAMETER
  • CUTTING LENGTH
  • OVERALL LENGTH
  • SHANK DIAMETER
  • END TYPE
  • HELIX
  • LETTER SIZE
  • NECK LENGTH
  • POINT ANGLE
  • CUT DIA. X LENGTH
  • MARGIN
  • COOLANT
  • COATING
    • NDPR073
    • 600064
    • 2
    • 7.3
    • 46
    • 80
    • FACET
    • 30
    • 4xD
    • SINGLE
    • EXTERNAL
    • PVD
