NDPR
NDPR119
- US: 0 units
- In-transit: 0 units
- Korea: 13 units
SERIES DESCRIPTION

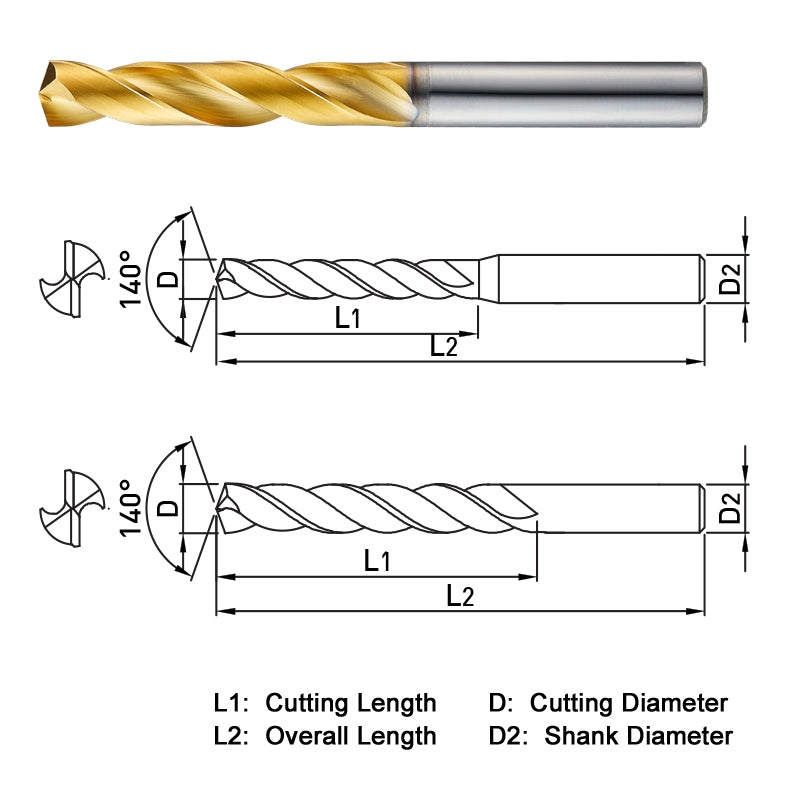

• 2 FLUTE - 4XD CUT LENGTH - SOLID CARBIDE - ALTiN COATING - METRIC • Single Margin • 140° point angle • Cutting diameter range 1mm - 20mm • Good up to 50HRc • Excellent in alloy & stainless steel, cast iron and harden steels up to 50HRc
Tolerance
~D3 = 0~-0.01mm D3.1~D6 = 0~-0.012mm D6.1~D10 = 0~-0.015mm D10.1~D18 = 0~-0.018mm D16 = h7 D18.1~ = 0~-0.01mm SHANK DIA. = h6
