PF503

PF503152

PF503152

DRILL

Price
  • List:$247.69

  • US: 3 units
  • In-transit: 0 units
  • Korea: 14 units

SERIES DESCRIPTION

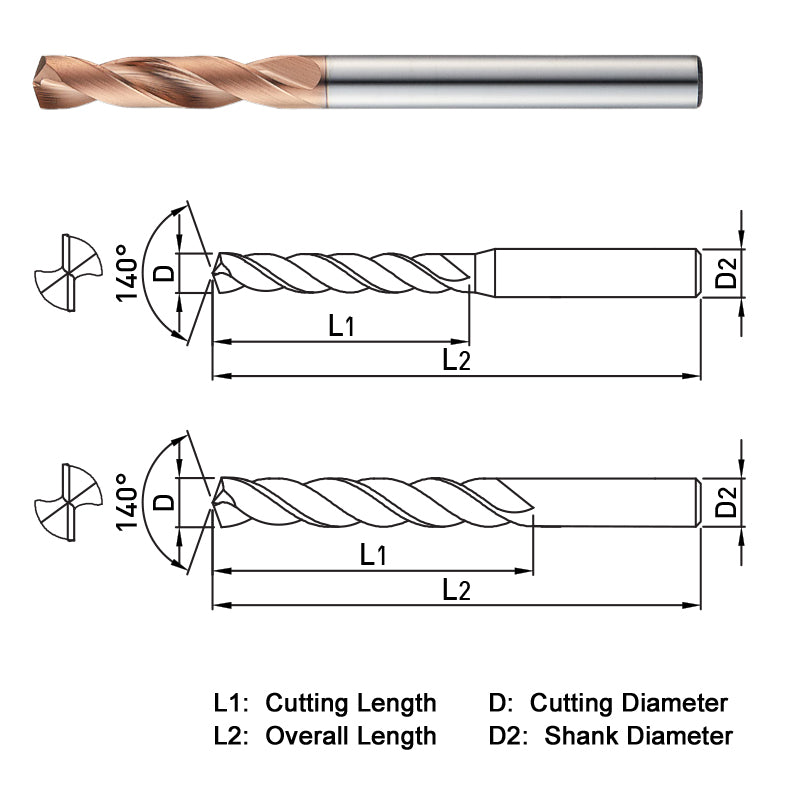

• 2 FLUTE - 3XD CUT LENGTH - SOLID CARBIDE - TiALN+HH COATING - METRIC & INCH
• Single Margin
• 140° point angle
• Cutting diameter range = 2mm - 20mm
• Good up to 50HRc
• Excellent in alloy & stainless steel, cast iron and harden steels up to 50HRc

Tolerance

~D3 = 0~-0.014mm D3.1~D6 = 0~-0.018mm D6.1~D10 = 0~-0.022mm D10.1~D18 = 0~-0.027mm D18~ = 0~-0.033mm SHANK DIA. = h6

  • EDP NO
  • PART NO
  • FLUTES
  • CUTTING DIAMETER
  • CUTTING LENGTH
  • OVERALL LENGTH
  • SHANK DIAMETER
  • END TYPE
  • HELIX
  • LETTER SIZE
  • NECK LENGTH
  • POINT ANGLE
  • CUT DIA. X LENGTH
  • MARGIN
  • COOLANT
  • COATING
    • PF503152
    • 243164
    • 2
    • 15.2
    • 64
    • 115
    • FACET
    • 30
    • 140°
    • 3xD
    • SINGLE
    • EXTERNAL
    • TiAlN-HH
