DRILL

Price

List:$367.44

US: 0 units
In-transit: 0 units
Korea: 6 units

SERIES DESCRIPTION

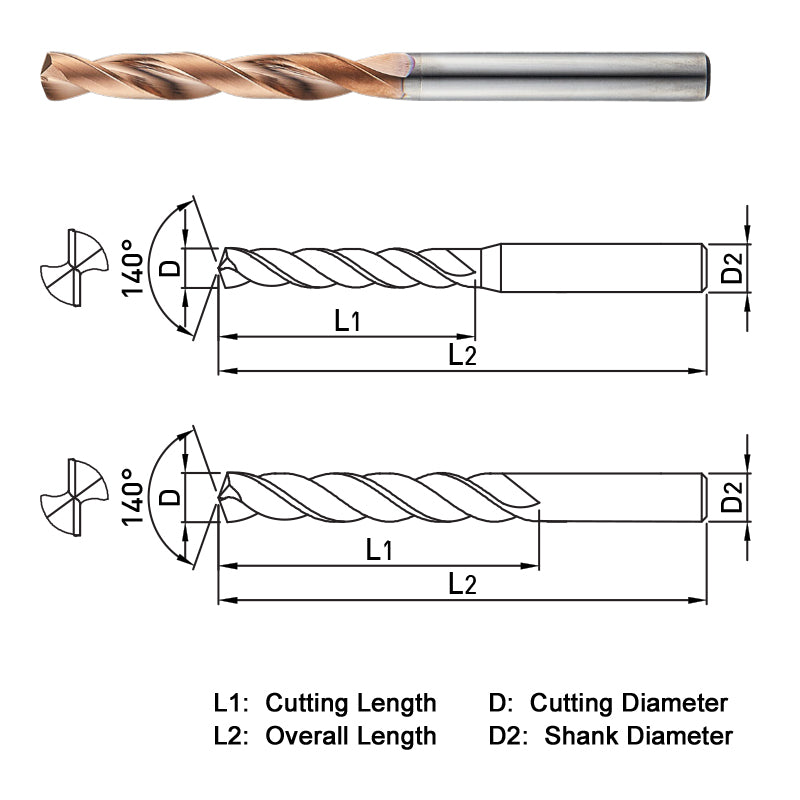

• 2 FLUTE - 5XD CUT LENGTH - SOLID CARBIDE - TiALN+HH COATING - METRIC & INCH • Single Margin • 140° point angle • Cutting diameter range = 2mm - 20mm • Good up to 50HRc • Excellent in alloy & stainless steel, cast iron and harden steels up to 50HRc

Tolerance

~D3 = 0~-0.014mm D3.1~D6 = 0~-0.018mm D6.1~D10 = 0~-0.022mm D10.1~D18 = 0~-0.027mm D18~ = 0~-0.033mm SHANK DIA. = h6

EDP NO
PART NO
FLUTES
CUTTING DIAMETER
CUTTING LENGTH
OVERALL LENGTH
SHANK DIAMETER
END TYPE
HELIX
LETTER SIZE
NECK LENGTH
POINT ANGLE
CUT DIA. X LENGTH
MARGIN
COOLANT
COATING

- PF505142
- 244140
- 2
- 14.2
- 83
- 143
- FACET
- 30
- 140°
- 5xD
- SINGLE
- EXTERNAL
- TiAlN-HH
