SBR

SBR080

SBR080

CENTERING TOOL

Price
  • List:$88.96

  • US: 0 units
  • In-transit: 0 units
  • Korea: 0 units

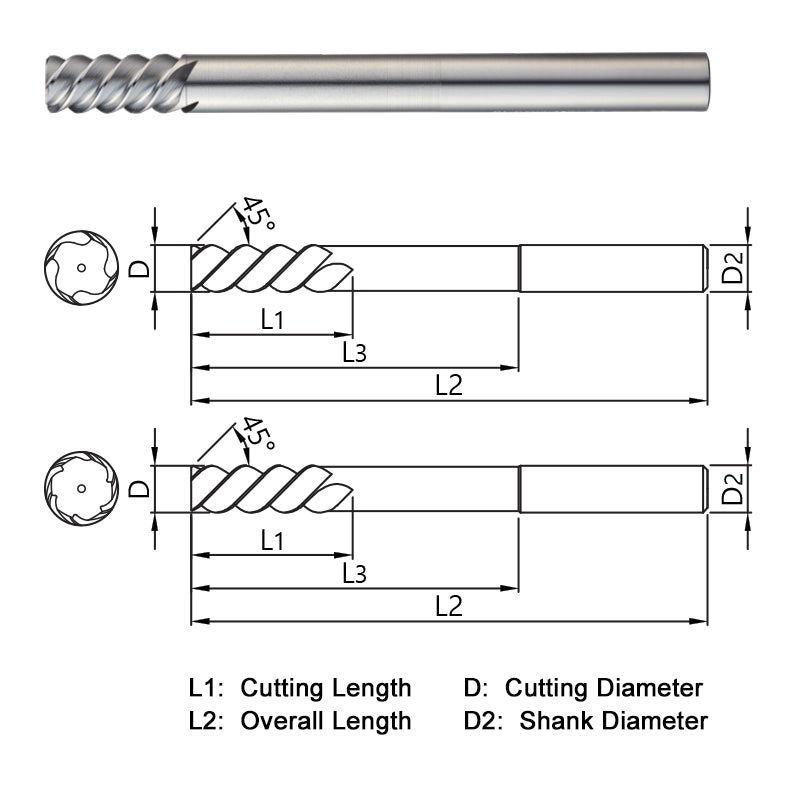

SERIES DESCRIPTION

• BROACH REAMER, 4 FLUTE, UNCOATED
• Applied to left helix
• Chips emitted in the direction of processing
• Suitable for the through holes work
• Excellent for high precision speed work by applied to taper on cutting edge
• Suitable for carbon, alloy, preharden, and stainless steels; copper, cast iron and aluminum

Tolerance

~D3 = +0.006~+0.002mm D4~D6 = +0.009~+0.004mm D8~D10 = +0.0012~+0.006mm D12~D16 = +0.015~+0.007mm D20~ = +0.017~+0.007mm SHANK DIA. = h6

  • EDP NO
  • PART NO
  • FLUTES
  • CUTTING DIAMETER
  • CUTTING LENGTH
  • OVERALL LENGTH
  • SHANK DIAMETER
  • END TYPE
  • HELIX
  • LETTER SIZE
  • POINT ANGLE
  • COATING
    • SBR080
    • 252005
    • 4
    • 8
    • 20
    • 100
    • BROACH REAMERS
    • 60
    • UNCOATED
