SF505

SF505124

SF505124

DRILL

Price
  • List:$316.01

  • US: 5 units
  • In-transit: 0 units
  • Korea: 10 units

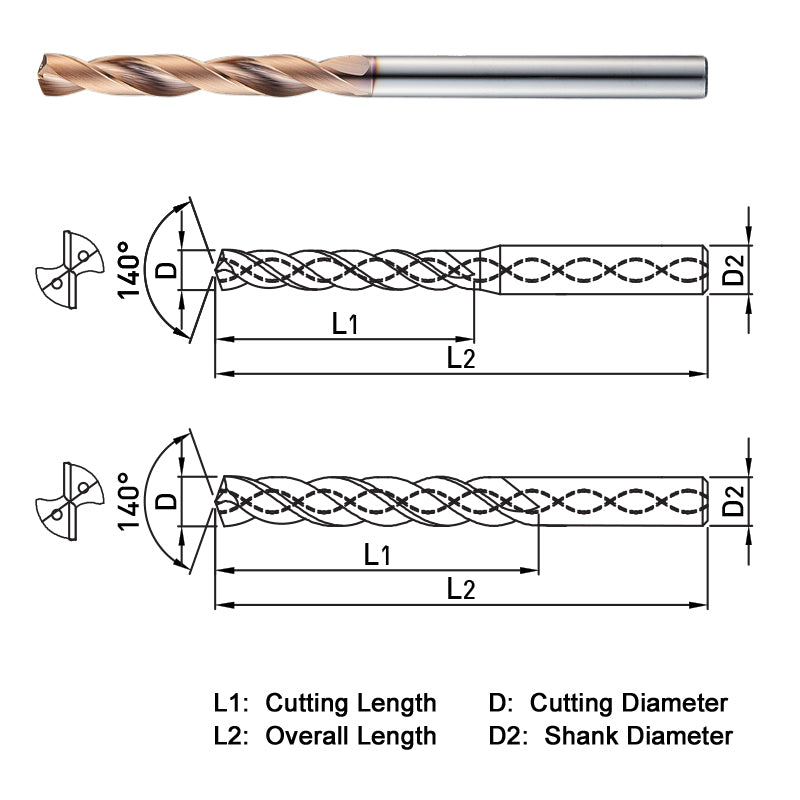

SERIES DESCRIPTION

• 2 FLUTE - 5XD CUT LENGTH - INTERNAL COOLANT - TiALN+HH COATING - METRIC • Single Margin • 140° point angle • Cutting diameter range = 3mm - 20m • Good up to 50HRc • Excellent in alloy & stainless steel, cast iron and harden steels up to 50HRc

Tolerance

~D3 = 0~-0.014mm D3.1~D6 = 0~-0.018mm D6.1~D10 = 0~-0.022mm D10.1~D18 = 0~-0.027mm D18.1~ = 0~-0.033mm SHANK DIA. = h6

  • EDP NO
  • PART NO
  • FLUTES
  • CUTTING DIAMETER
  • CUTTING LENGTH
  • OVERALL LENGTH
  • SHANK DIAMETER
  • END TYPE
  • HELIX
  • LETTER SIZE
  • NECK LENGTH
  • POINT ANGLE
  • CUT DIA. X LENGTH
  • MARGIN
  • COOLANT
  • COATING
    • SF505124
    • 255119
    • 2
    • 12.4
    • 75
    • 137
    • FACET
    • 30
    • 140°
    • 5xD
    • SINGLE
    • INTERNAL
    • TiAlN-HH
