SF508

SF508050

SF508050

DRILL

Price
  • List:$110.95

  • US: 23 units
  • In-transit: 0 units
  • Korea: 6 units

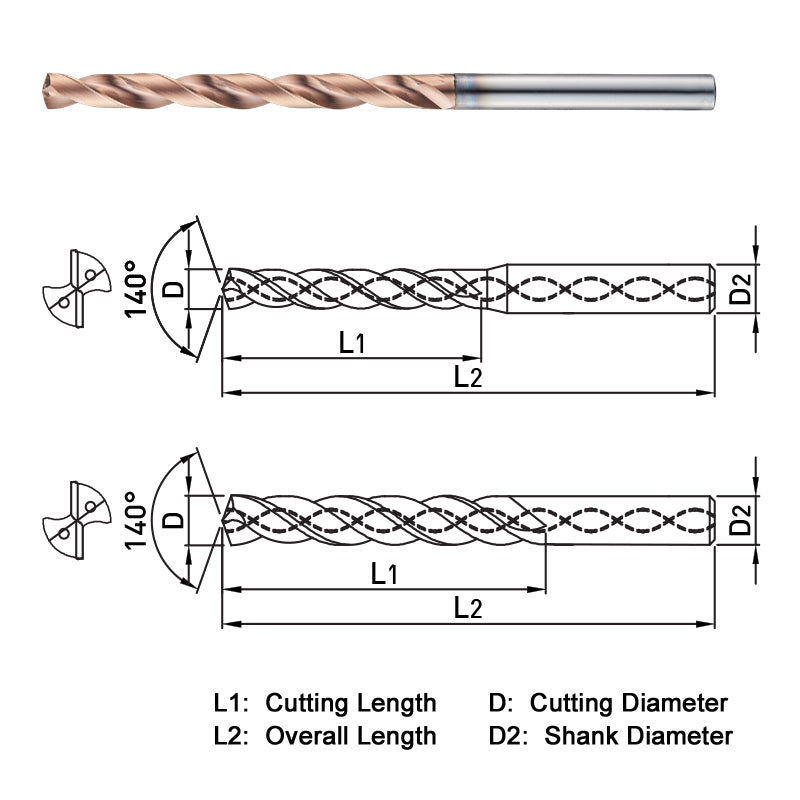

SERIES DESCRIPTION

• 2 FLUTE - 8XD CUT LENGTH - INTERNAL COOLANT - TiALN+HH COATING - METRIC
• Single Margin
• 140° point angle
• Cutting diameter range = 3mm - 20m
• Good up to 50HRc
• Excellent in alloy & stainless steel, cast iron and harden steels up to 50HRc

Tolerance

~D3=0~-0.014mm D3.1~D6 = 0~-0.018mm D6.1~D10 = 0~-0.022mm 10.1~D13 = 0~-0.027mm SHANK DIA. = h6

  • EDP NO
  • PART NO
  • FLUTES
  • CUTTING DIAMETER
  • CUTTING LENGTH
  • OVERALL LENGTH
  • SHANK DIAMETER
  • END TYPE
  • HELIX
  • LETTER SIZE
  • NECK LENGTH
  • POINT ANGLE
  • CUT DIA. X LENGTH
  • MARGIN
  • COOLANT
  • COATING
    • SF508050
    • 661051
    • 2
    • 5
    • 56
    • 94
    • FACET
    • 30
    • 140°
    • 8xD
    • SINGLE
    • INTERNAL
    • AlCrn
