DRILL

Price

List:$132.42

US: 7 units
In-transit: 0 units
Korea: 8 units

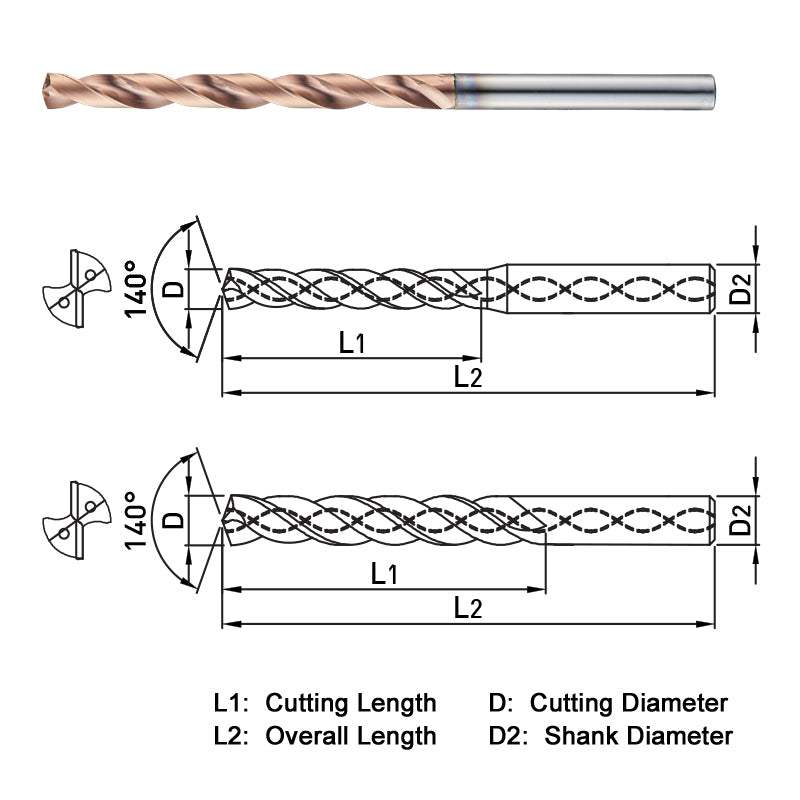

SERIES DESCRIPTION

• 2 FLUTE - 8XD CUT LENGTH - INTERNAL COOLANT - TiALN+HH COATING - METRIC • Single Margin • 140° point angle • Cutting diameter range = 3mm - 20m • Good up to 50HRc • Excellent in alloy & stainless steel, cast iron and harden steels up to 50HRc

Tolerance

~D3=0~-0.014mm D3.1~D6 = 0~-0.018mm D6.1~D10 = 0~-0.022mm 10.1~D13 = 0~-0.027mm SHANK DIA. = h6

EDP NO
PART NO
FLUTES
CUTTING DIAMETER
CUTTING LENGTH
OVERALL LENGTH
SHANK DIAMETER
END TYPE
HELIX
LETTER SIZE
NECK LENGTH
POINT ANGLE
CUT DIA. X LENGTH
MARGIN
COOLANT
COATING

- SF508056
- 661058
- 2
- 5.6
- 56
- 94
- FACET
- 30
- 140°
- 8xD
- SINGLE
- INTERNAL
- AlCrn
