SF508
SF508093
![SF508093](http://widinus.com/cdn/shop/products/SF508_20DRILL_20POWER_20MAX_20METRIC_0d2ad21c-eb61-4042-9e4d-50b6fa572d7a_{width}x.jpg?v=1681308251)
- US: 13 units
- In-transit: 0 units
- Korea: 0 units

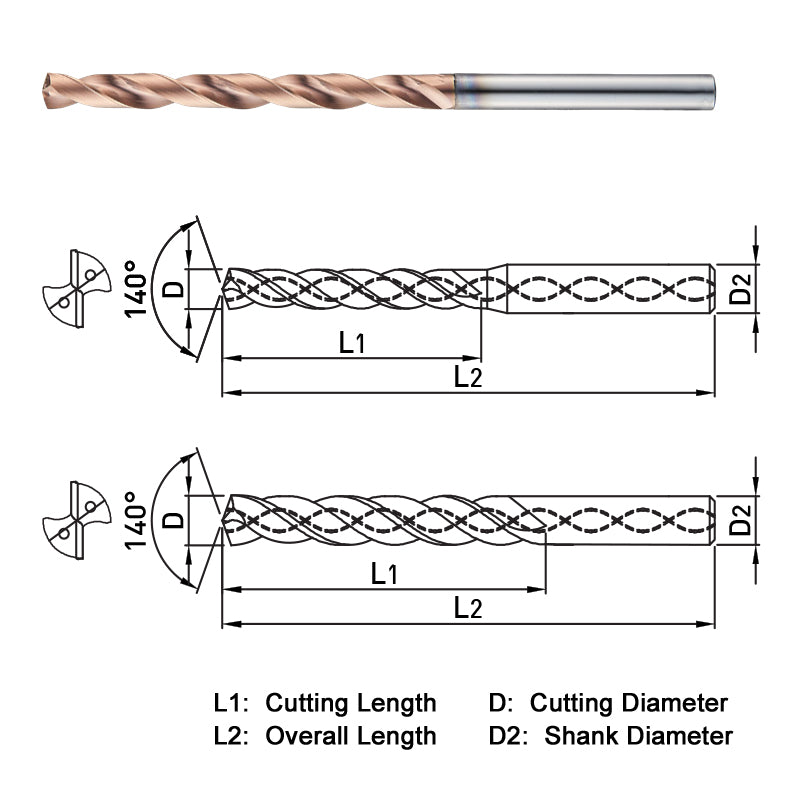

SERIES DESCRIPTION
• 2 FLUTE - 8XD CUT LENGTH - INTERNAL COOLANT - TiALN+HH COATING - METRIC • Single Margin • 140° point angle • Cutting diameter range = 3mm - 20m • Good up to 50HRc • Excellent in alloy & stainless steel, cast iron and harden steels up to 50HRc
Tolerance
~D3=0~-0.014mm D3.1~D6 = 0~-0.018mm D6.1~D10 = 0~-0.022mm 10.1~D13 = 0~-0.027mm SHANK DIA. = h6
