SF510

SF510098

SF510098

DRILL

Price
  • List:$434.75

  • US: 9 units
  • In-transit: 0 units
  • Korea: 3 units

SERIES DESCRIPTION

• 2 FLUTE - 10XD CUT LENGTH - INTERNAL COOLANT - TiALN+HH COATING - METRIC
• Single Margin
• 140° point angle
• Cutting diameter range = 3mm - 20m
• Good up to 50HRc
• Excellent in alloy & stainless steel, cast iron and harden steels up to 50HRc

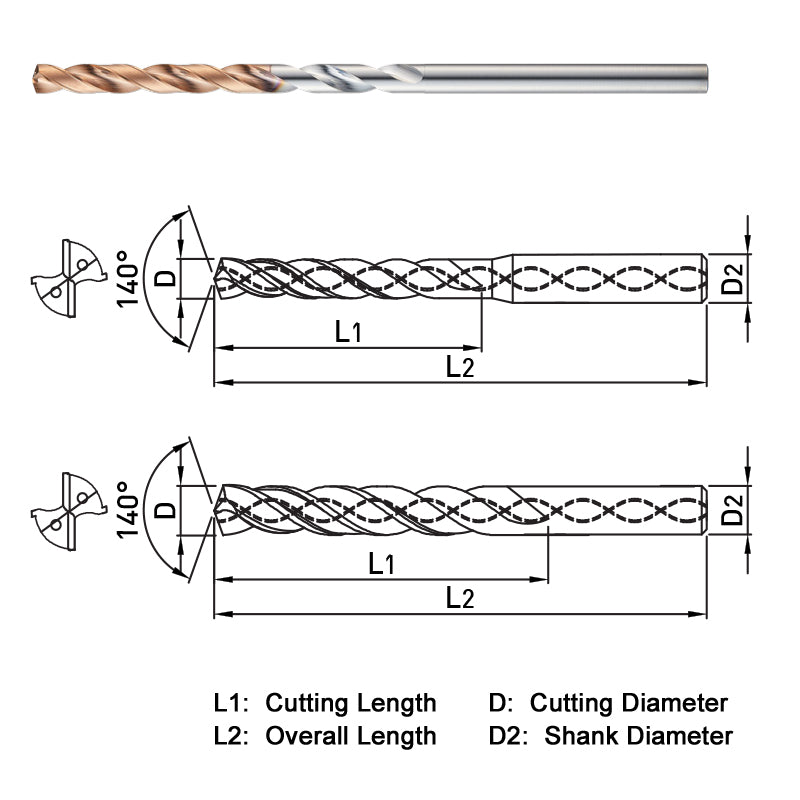

Tolerance

~D3=0~-0.014mm D3.1~D6 = 0~-0.018mm D6.1~D10 = 0~-0.022mm 10.1~D13 = 0~-0.027mm SHANK DIA. = h6

  • EDP NO
  • PART NO
  • FLUTES
  • CUTTING DIAMETER
  • CUTTING LENGTH
  • OVERALL LENGTH
  • SHANK DIAMETER
  • END TYPE
  • HELIX
  • LETTER SIZE
  • NECK LENGTH
  • POINT ANGLE
  • CUT DIA. X LENGTH
  • MARGIN
  • COOLANT
  • COATING
    • SF510098
    • 256070
    • 2
    • 9.8
    • 131
    • 186
    • FACET
    • 30
    • 140°
    • 10xD
    • DOUBLE
    • INTERNAL
    • TiAlN-HH
