SF520

SF520057

SF520057

DRILL

Price
  • List:$360.06

  • US: 10 units
  • In-transit: 0 units
  • Korea: 8 units

SERIES DESCRIPTION

• 2 FLUTE - 20XD CUT LENGTH - INTERNAL COOLANT - TiALN+HH COATING - METRIC • Single Margin • 140° point angle • Cutting diameter range = 3mm - 20m • Good up to 50HRc • Excellent in alloy & stainless steel, cast iron and harden steels up to 50HRc

Tolerance

D4.1~D6 = 0~-0.018mm D6.1~D10 = 0~-0.022mm SHANK DIA. = h6

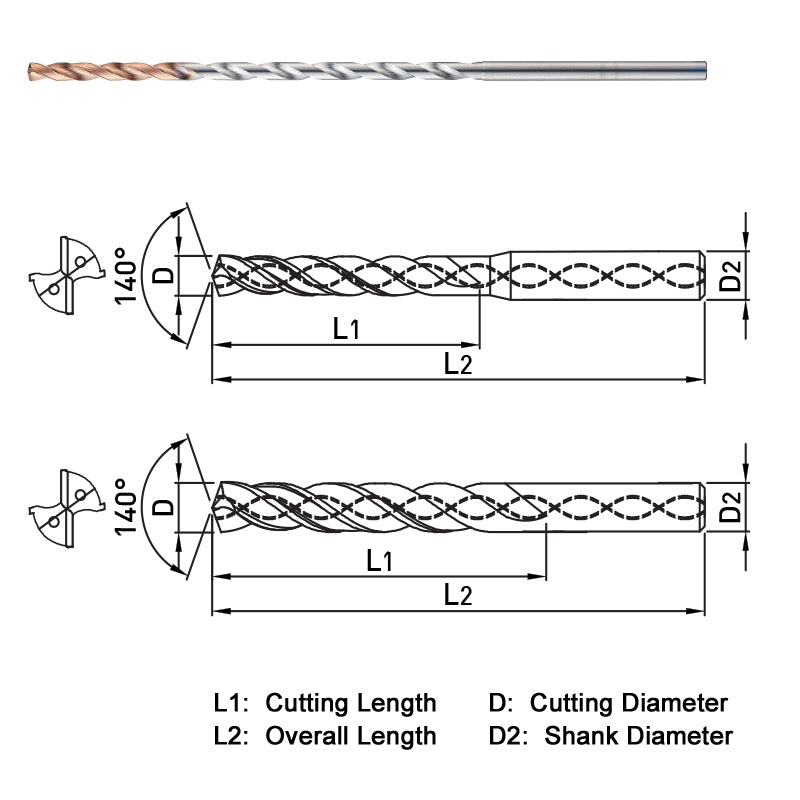

  • EDP NO
  • PART NO
  • FLUTES
  • CUTTING DIAMETER
  • CUTTING LENGTH
  • OVERALL LENGTH
  • SHANK DIAMETER
  • END TYPE
  • HELIX
  • LETTER SIZE
  • NECK LENGTH
  • POINT ANGLE
  • CUT DIA. X LENGTH
  • MARGIN
  • COOLANT
  • COATING
    • SF520057
    • 257019
    • 2
    • 5.7
    • 139
    • 190
    • FACET
    • 30
    • 140°
    • 20xD
    • DOUBLE
    • INTERNAL
    • TiAlN-HH
