DRILL

Price

List:$17.55

US: 22 units
In-transit: 0 units
Korea: 248 units

SERIES DESCRIPTION

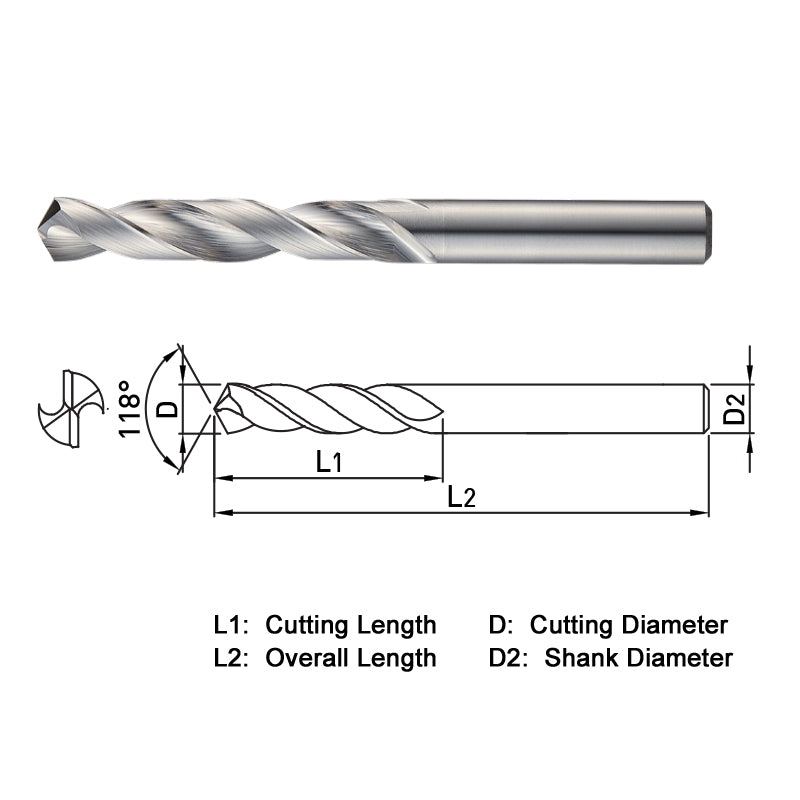

• 2 FLUTE - JOBBER LENGTH - SOLID CARBIDE - BRIGHT - METRIC Single Margin • 118° point angle • Cutting diameter range 1mm - 13mm • Good up to 30HRc • Excellent in carbon steel, aluminum and brass

Tolerance

~D3 = 0~-0.014mm D3.1~D6 = 0~-0.018mm D6.1~D10 = 0~-0.022mm D10.1~D13 = 0~-0.027mm SHANK DIA. = h7

EDP NO
PART NO
FLUTES
CUTTING DIAMETER
CUTTING LENGTH
OVERALL LENGTH
SHANK DIAMETER
END TYPE
HELIX
LETTER SIZE
NECK LENGTH
POINT ANGLE
CUT DIA. X LENGTH
MARGIN
COOLANT
COATING

- SSD034
- 261026
- 2
- 3.4
- 25
- 50
- FACET
- 30
- 118°
- 4xD
- SINGLE
- EXTERNAL
- Uncoated
