SSD

SSD102

SSD102

DRILL

Price
  • List:$113.98

  • US: 5 units
  • In-transit: 0 units
  • Korea: 33 units

SERIES DESCRIPTION

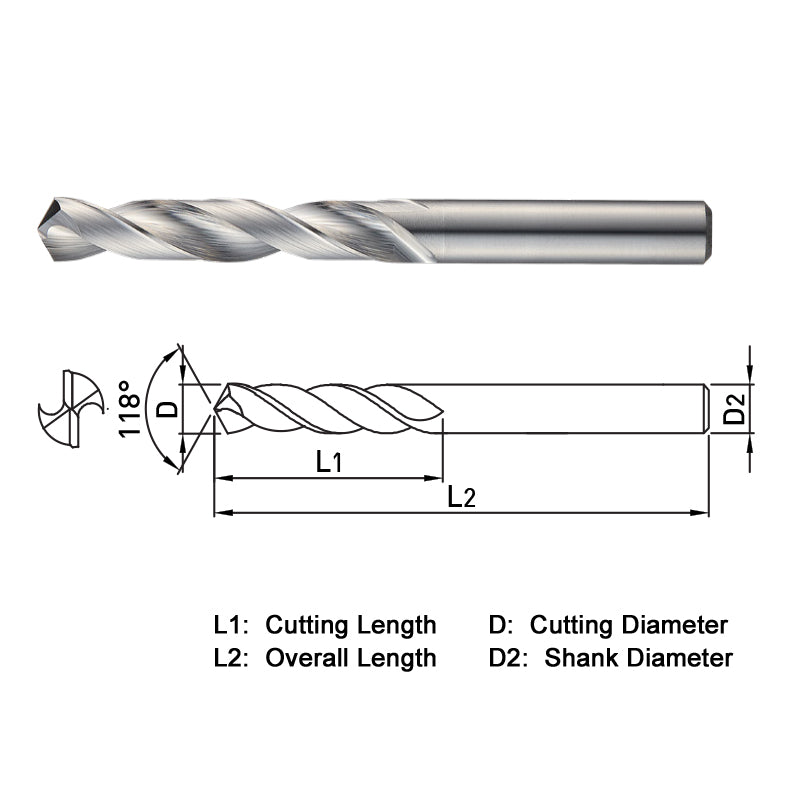

• 2 FLUTE - JOBBER LENGTH - SOLID CARBIDE - BRIGHT - METRIC Single Margin • 118° point angle • Cutting diameter range 1mm - 13mm • Good up to 30HRc • Excellent in carbon steel, aluminum and brass

Tolerance

~D3 = 0~-0.014mm D3.1~D6 = 0~-0.018mm D6.1~D10 = 0~-0.022mm D10.1~D13 = 0~-0.027mm SHANK DIA. = h7

  • EDP NO
  • PART NO
  • FLUTES
  • CUTTING DIAMETER
  • CUTTING LENGTH
  • OVERALL LENGTH
  • SHANK DIAMETER
  • END TYPE
  • HELIX
  • LETTER SIZE
  • NECK LENGTH
  • POINT ANGLE
  • CUT DIA. X LENGTH
  • MARGIN
  • COOLANT
  • COATING
    • SSD102
    • 261094
    • 2
    • 10.2
    • 55
    • 115
    • FACET
    • 30
    • 118°
    • 4xD
    • SINGLE
    • EXTERNAL
    • Uncoated
