DRILL

Price

List:$72.18

US: 0 units
In-transit: 0 units
Korea: 24 units

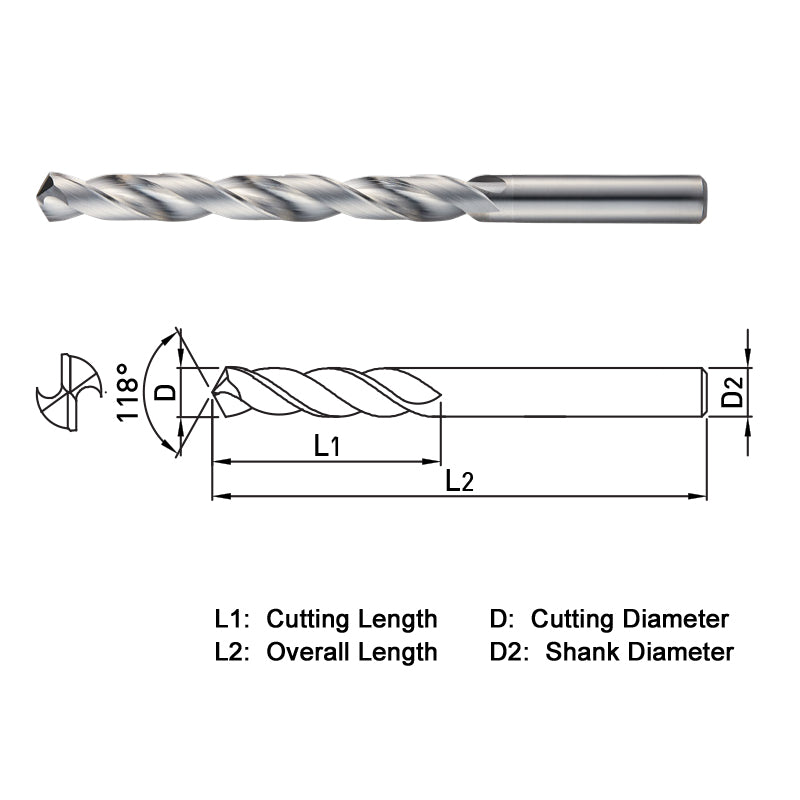

SERIES DESCRIPTION

• 2 FLUTE - 8XD CUT LENGTH - SOLID CARBIDE - BRIGHT - METRIC Single Margin
• 118° point angle
• Cutting diameter range 2mm - 10mm
• Good up to 30HRc
• Excellent in carbon steel, aluminum and brass

Tolerance

~D3 = 0~-0.014mm D3.1~D6 = 0~-0.018mm D6.1~D10 = 0~-0.022mm D10.1~D13 = 0~-0.027mm SHANK DIA. = h7

EDP NO
PART NO
FLUTES
CUTTING DIAMETER
CUTTING LENGTH
OVERALL LENGTH
SHANK DIAMETER
END TYPE
HELIX
LETTER SIZE
NECK LENGTH
POINT ANGLE
CUT DIA. X LENGTH
MARGIN
COOLANT
COATING

- SSDL075
- 262056
- 2
- 7.5
- 76
- 110
- FACET
- 30
- 118°
- 8xD
- SINGLE
- EXTERNAL
- Uncoated
