SSR
SSR050
- US: 0 units
- In-transit: 0 units
- Korea: 182 units

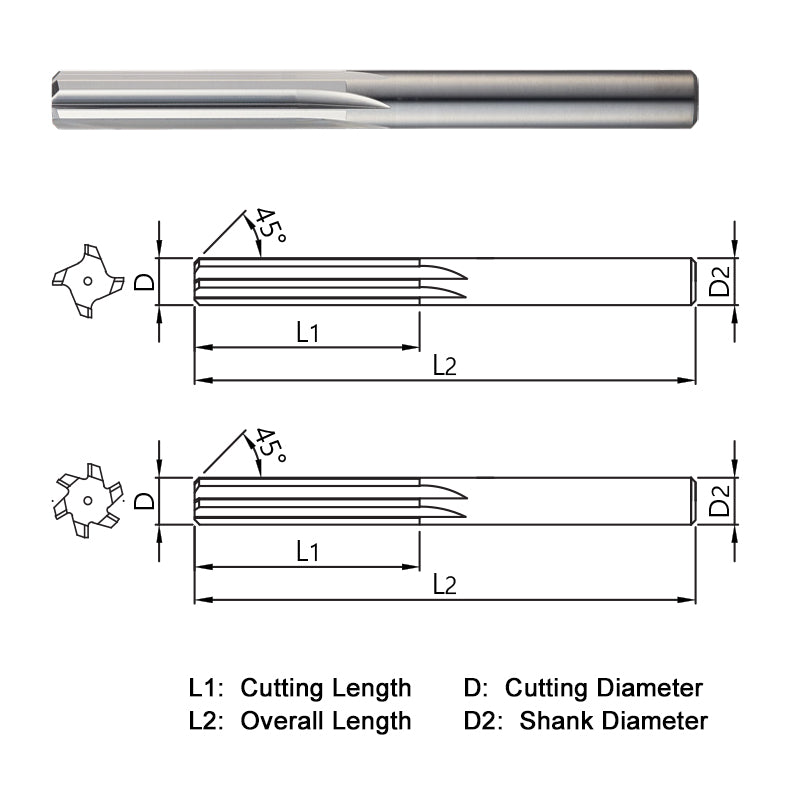

SERIES DESCRIPTION
• STRAIGHT FLUTE REAMER, 4-6 FLUTES, UNCOATED
• Straight helix applied
• Chips are emitted through flute
• Suitable for blind holes
• Excellent straightness by supplemented the flute
• Suitable for carbon, alloy, preharden, and stainless steels; copper, cast iron and aluminum
Tolerance
~D3 = +0.006~+0.002mm D3.1~D6 = +0.009~+0.004mm D6.1~D10 = +0.0012~+0.006mm D10.1~D12 = +0.015~+0.007mm SHANK DIA. = h6
