SSR

SSR065

SSR065

CENTERING TOOL

Price
  • List:$90.25

  • US: 0 units
  • In-transit: 0 units
  • Korea: 84 units

SERIES DESCRIPTION

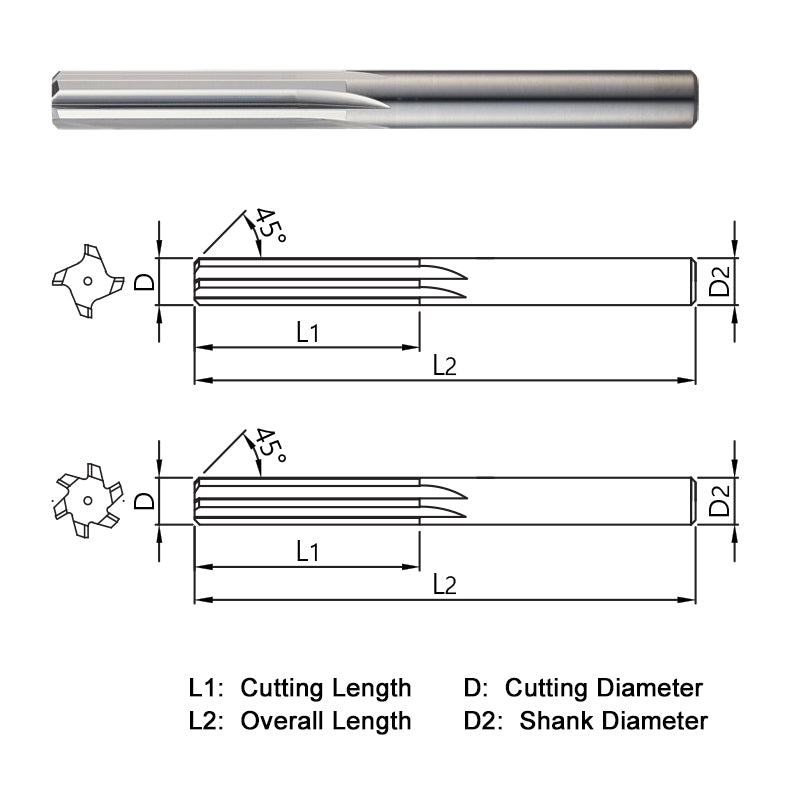

• STRAIGHT FLUTE REAMER, 4-6 FLUTES, UNCOATED
• Straight helix applied
• Chips are emitted through flute
• Suitable for blind holes
• Excellent straightness by supplemented the flute
• Suitable for carbon, alloy, preharden, and stainless steels; copper, cast iron and aluminum

Tolerance

~D3 = +0.006~+0.002mm D3.1~D6 = +0.009~+0.004mm D6.1~D10 = +0.0012~+0.006mm D10.1~D12 = +0.015~+0.007mm SHANK DIA. = h6

  • EDP NO
  • PART NO
  • FLUTES
  • CUTTING DIAMETER
  • CUTTING LENGTH
  • OVERALL LENGTH
  • SHANK DIAMETER
  • END TYPE
  • HELIX
  • LETTER SIZE
  • POINT ANGLE
  • COATING
    • SSR065
    • 263010
    • 6
    • 6.5
    • 45
    • 100
    • STRAIGHT FLUTE REAMER
    • 118°
    • UNCOATED
