SSTD

SSTD0055

SSTD0055

DRILL

Price
  • List:$35.44

  • US: 15 units
  • In-transit: 0 units
  • Korea: 41 units

SERIES DESCRIPTION

• 2 FLUTE - JOBBER LENGTH CUT LENGTH - SOLID CARBIDE - TIN COATING - METRIC • Single Margin • 118° point angle • Cutting diameter range 2mm - 13mm • Good up to 30HRc • Excellent in carbon steel, aluminum and brass

Tolerance

~D3 = +0.006~+0.002mm D3.1~D6 = +0.009~+0.004mm D6.1~D10 = +0.0012~+0.006mm D10.1~D12 = +0.015~+0.007mm SHANK DIA. = h7

  • EDP NO
  • PART NO
  • FLUTES

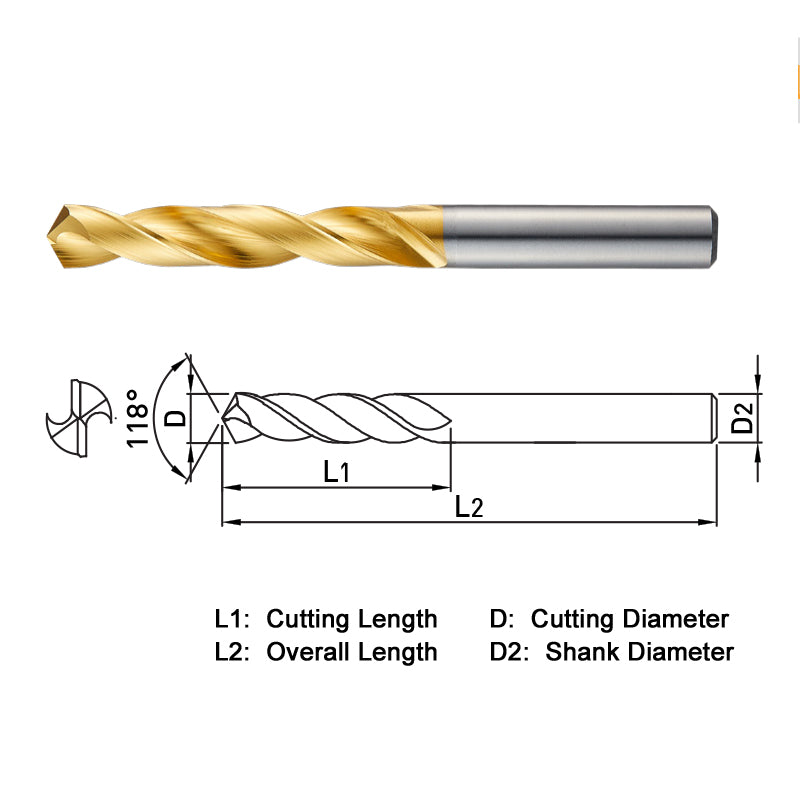

  • CUTTING DIAMETER
  • CUTTING LENGTH
  • OVERALL LENGTH
  • SHANK DIAMETER
  • END TYPE
  • HELIX
  • LETTER SIZE
  • NECK LENGTH
  • POINT ANGLE
  • CUT DIA. X LENGTH
  • MARGIN
  • COOLANT
  • COATING
    • SSTD0055
    • 264002
    • 2
    • 0.55
    • 7
    • 24
    • FACET
    • 30
    • 118°
    • 4xD
    • SINGLE
    • EXTERNAL
    • TiN
