SSTD

SSTD095

SSTD095

DRILL

Price
  • List:$69.50

  • US: 0 units
  • In-transit: 0 units
  • Korea: 76 units

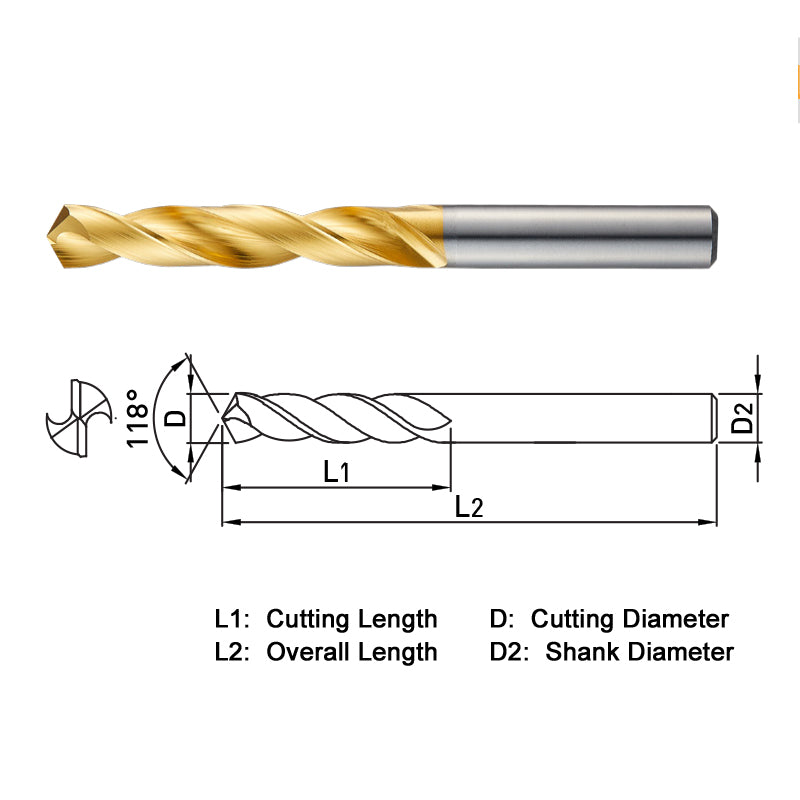

SERIES DESCRIPTION

• 2 FLUTE - JOBBER LENGTH CUT LENGTH - SOLID CARBIDE - TIN COATING - METRIC
• Single Margin
• 118° point angle
• Cutting diameter range 2mm - 13mm
• Good up to 30HRc
• Excellent in carbon steel, aluminum and brass

Tolerance

~D3 = +0.006~+0.002mm D3.1~D6 = +0.009~+0.004mm D6.1~D10 = +0.0012~+0.006mm D10.1~D12 = +0.015~+0.007mm SHANK DIA. = h7

  • EDP NO
  • PART NO
  • FLUTES
  • CUTTING DIAMETER
  • CUTTING LENGTH
  • OVERALL LENGTH
  • SHANK DIAMETER
  • END TYPE
  • HELIX
  • LETTER SIZE
  • NECK LENGTH
  • POINT ANGLE
  • CUT DIA. X LENGTH
  • MARGIN
  • COOLANT
  • COATING
    • SSTD095
    • 264096
    • 2
    • 9.5
    • 50
    • 95
    • FACET
    • 30
    • 118°
    • 4xD
    • SINGLE
    • EXTERNAL
    • TiN
