SSTD
SSTD099
- US: 0 units
- In-transit: 0 units
- Korea: 79 units
SERIES DESCRIPTION

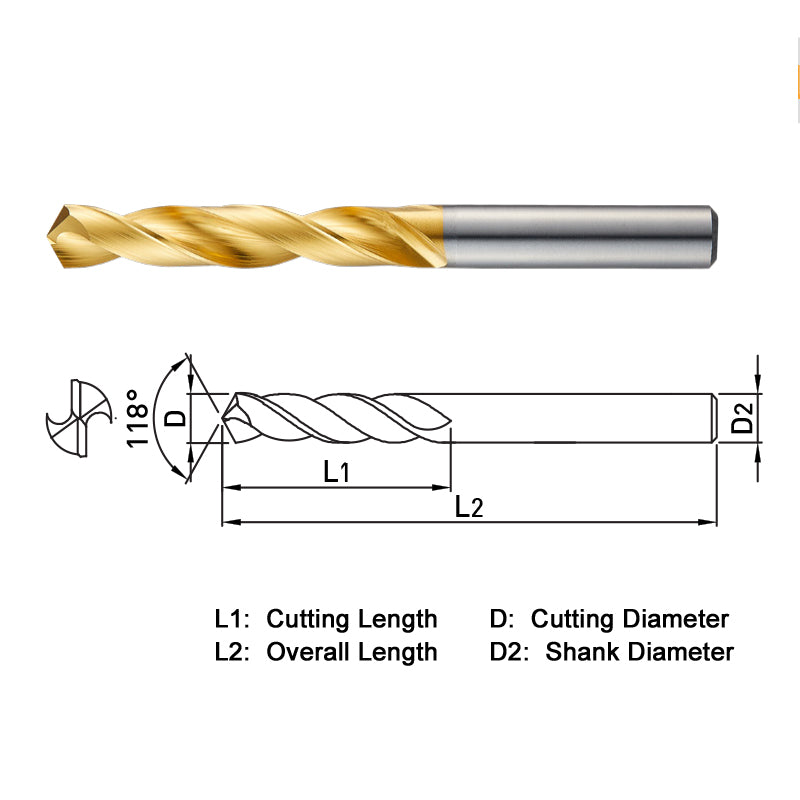

• 2 FLUTE - JOBBER LENGTH CUT LENGTH - SOLID CARBIDE - TIN COATING - METRIC
• Single Margin
• 118° point angle
• Cutting diameter range 2mm - 13mm
• Good up to 30HRc
• Excellent in carbon steel, aluminum and brass
Tolerance
~D3 = +0.006~+0.002mm D3.1~D6 = +0.009~+0.004mm D6.1~D10 = +0.0012~+0.006mm D10.1~D12 = +0.015~+0.007mm SHANK DIA. = h7
