SSTD
SSTD119
![SSTD119](http://widinus.com/cdn/shop/products/SSTD_20DRILL_20SOLID_20SPIRAL_20METRIC_0025761e-4a47-4f15-87dc-19da0b4c6b7e_{width}x.jpg?v=1681308043)
- US: 0 units
- In-transit: 0 units
- Korea: 4 units

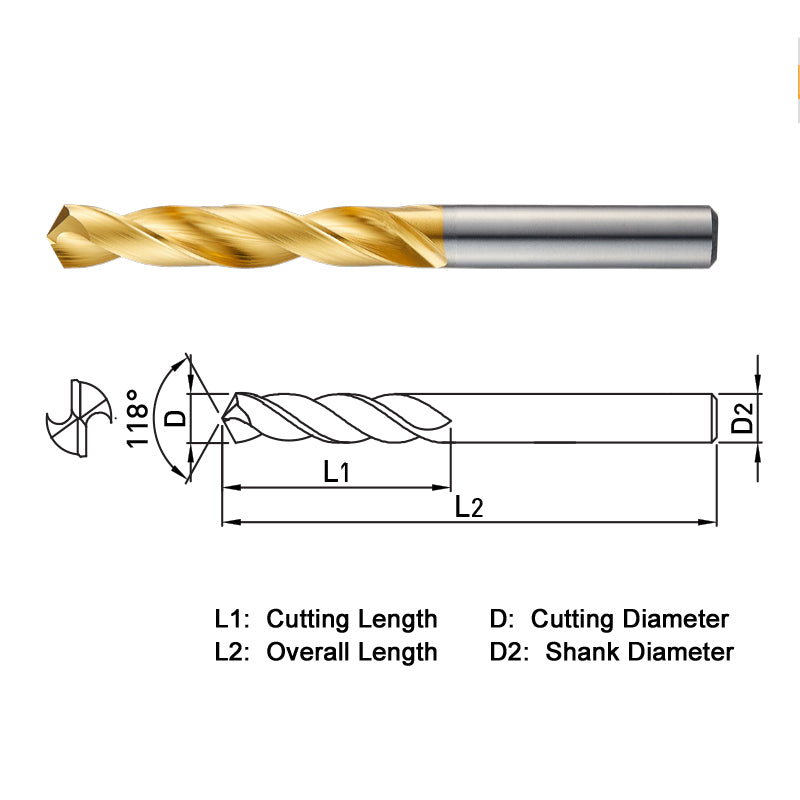

SERIES DESCRIPTION
• 2 FLUTE - JOBBER LENGTH CUT LENGTH - SOLID CARBIDE - TIN COATING - METRIC • Single Margin • 118° point angle • Cutting diameter range 2mm - 13mm • Good up to 30HRc • Excellent in carbon steel, aluminum and brass
Tolerance
~D3 = +0.006~+0.002mm D3.1~D6 = +0.009~+0.004mm D6.1~D10 = +0.0012~+0.006mm D10.1~D12 = +0.015~+0.007mm SHANK DIA. = h7
