VXR514A

VXR514A028015

VXR514A028015

END MILL

Price
  • List:$93.94

  • US: 47 units
  • In-transit: 0 units
  • Korea: 14 units

SERIES DESCRIPTION

• CORNER RADIUS - 4 FLUTE - STANDARD LENGTH END MILLS WITHOUT REACH - INCH • Outstanding cutting edge preparation to reduce cutting edge chipping • Ultra-micro grain structure to provide both a longer and more consistent tool life with higher wear resistance and less chipping. • AlCrN based high quality coating provides superior wear resistance, longer tool life and outstanding prevention to high temperature oxidation of tools • Variable helix and unequal index • Corner radius to reduce corner chipping • Stable high-speed milling through tool geometry - variable helix and optimized rake angle • High quality workpiece surface finish due minimization of vibration • Excellent in carbon, alloy steel & prehardened steel, stainless and cast iron. • Good in high temp alloy and titanium

Tolerance

R = ±.001 inch SHANK DIA. = h6

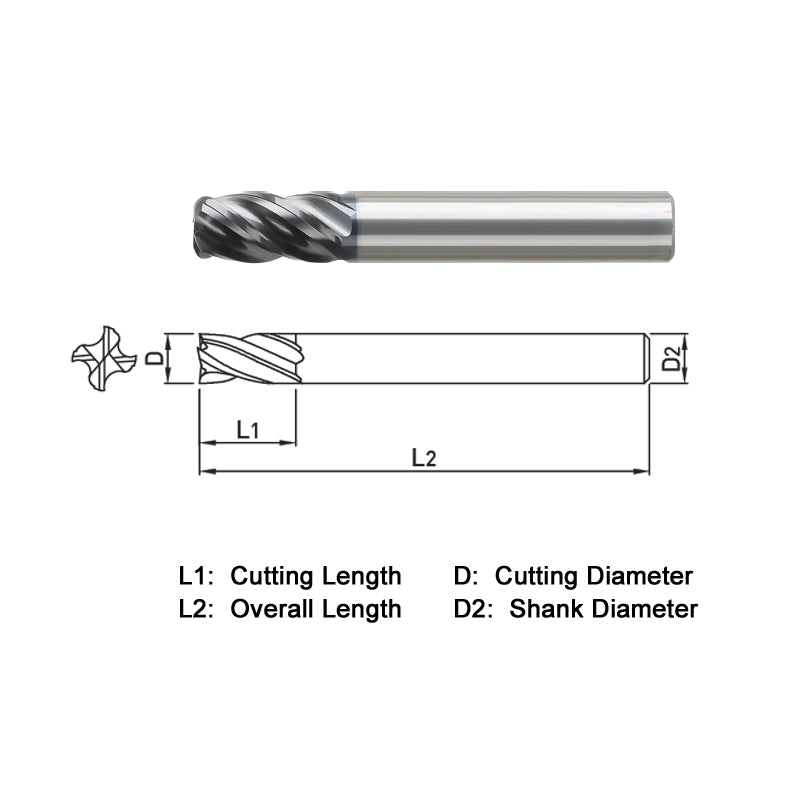

  • EDP NO
  • PART NO
  • FLUTES
  • CUTTING LENGTH
  • CUTTING DIAMETER
  • OVERALL LENGTH
  • SHANK DIAMETER
  • NECK LENGTH
  • CORNER RADIUS
  • END CUT TYPE
  • LETTER SIZE
  • TAPER DEGREE
  • POINT ANGLE
  • COATING
    • VXR514A028015
    • 642024
    • 4
    • 7/8
    • 7/16
    • 2-3/4
    • 7/16
    • 0.015
    • 0.015
    • CORNER RADIUS
    • 7/16
    • Alcrn
